Hello Friends,

I have some questions: the stock has a curve and no bump for the righty hand it’s one continuous curve and I haven’t seen that in the research I’ve done. Secondly, inside the lock plate has S&cS any info would be great.
4th generation hand me down.

  • Like
Reactions: WJC

ChuckPaul

Private
Joined
Nov 21, 2018
Messages
25

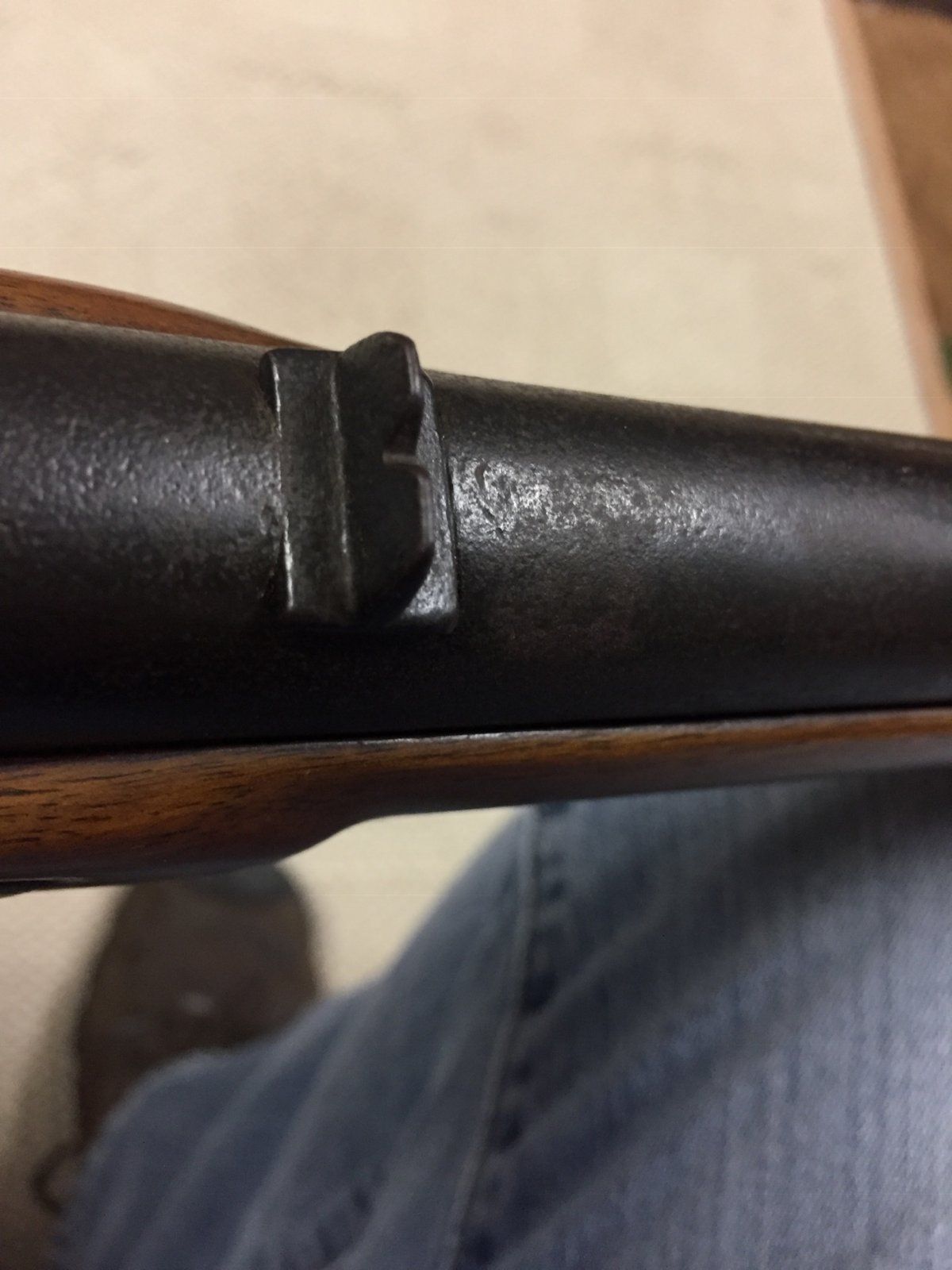

The sites were the other question I had have. I’ve seen ladder sites but this looks like my Red Ryder BB gun, which Intrigues me.

Fewer ads. Lots of American Civil War content!
JOIN NOW: REGISTER HERE!

ucvrelics

Major
Forum Host
Joined
May 7, 2016
Messages
7,846
Location
Alabama
Thanks for posting. The Crown with no VR tells me it was made for export and the 25 on the barrel would be for .577. The sights are a mystery and they are NOT original equipment. If you pull the barrel there should be some markings on the bottom of the barrel and a makers mark inside the barrel channel on the stock. Also, as I know they will ask could you post some photos of the butt plate to include the tang. With these muskets I always defer to @Craig L Barry and @Lanyard Puller

Fewer ads. Lots of American Civil War content!
JOIN NOW: REGISTER HERE!

ChuckPaul

Private
Joined
Nov 21, 2018
Messages
25
What about the lock plate S&cS marks


Attachments

Fewer ads. Lots of American Civil War content!
JOIN NOW: REGISTER HERE!
Fewer ads. Lots of American Civil War content!
JOIN NOW: REGISTER HERE!

ChuckPaul

Private
Joined
Nov 21, 2018
Messages
25
It’s a two band ...is there a historical service ie. Army/navy a two band would have vs. a three band.


Ralph Heinz

Corporal
Joined
Feb 14, 2016
Messages
258
Location
Pacific Northwest

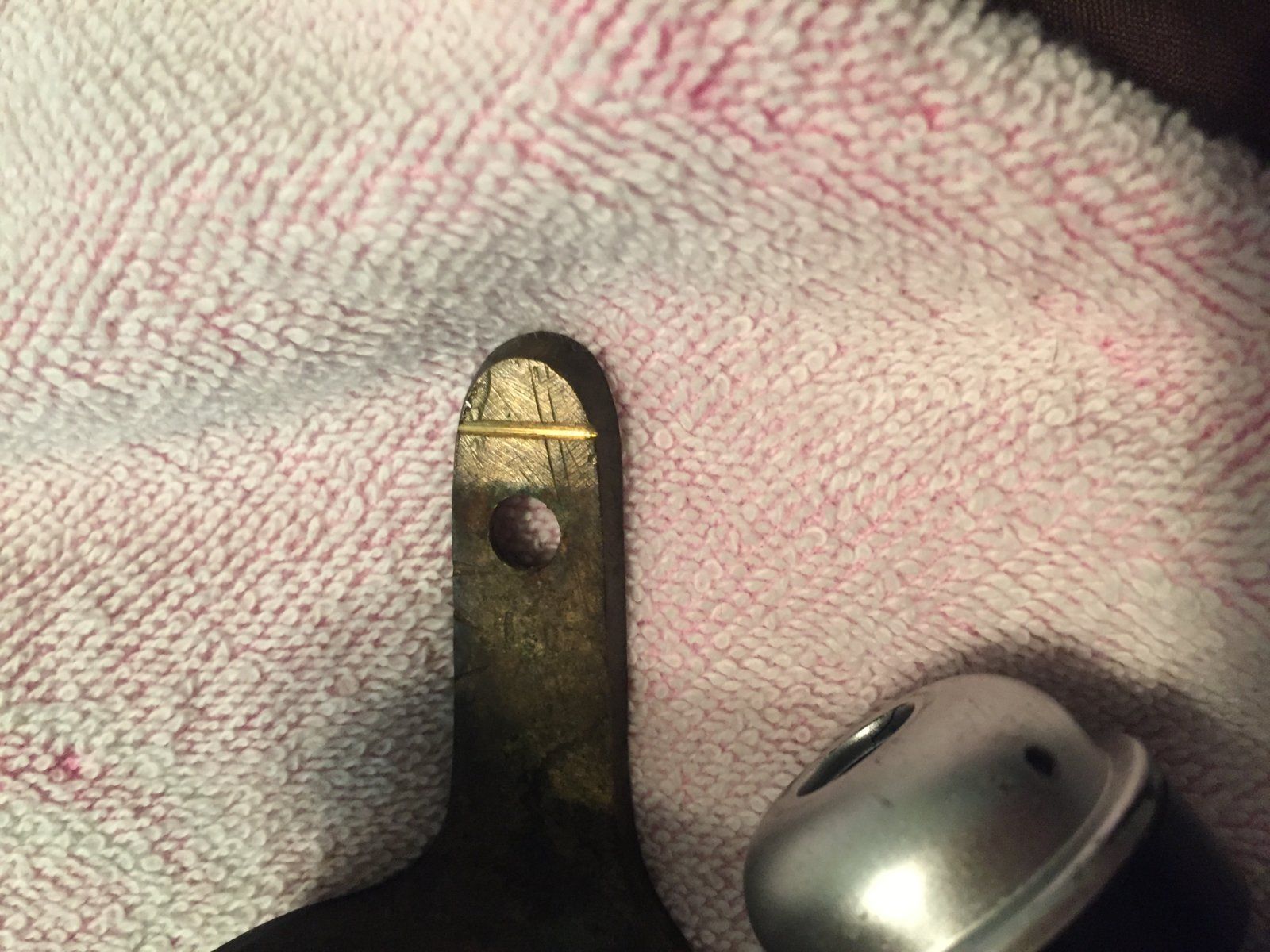

Without a photo of the full rifle we can't tell if it has been cut down in length. The photo of the tang appears to show that it has been welded. Where is that odd brass piece set into the stock? -- it is not original to the rifle. Is the bore rifled or bored out smooth? All the things that have been done to this rifle reflect things done long after the Civil War.

Fewer ads. Lots of American Civil War content!
JOIN NOW: REGISTER HERE!

Lanyard Puller

Sergeant
Joined
Nov 29, 2017
Messages
570
Location
South Carolina
Some more information would be helpful; how long is the barrel ? and the other questions posted by @Ralph Heinz.

The "S&S" stamped inside the lock would be the lock maker, in this case W. Scott & C. Scott, important Birmingham gunsmiths. The other initials are the lock inspector, there were many, and it is if no significance to further ID's.
The stock has been heavily sanded and I'd think most of the marks are long gone.


ChuckPaul

Private
Joined
Nov 21, 2018
Messages
25
14D297B5-F82B-4C7A-93A0-688D635FFC98.jpeg B9091CAE-9D56-4FBB-AE8E-986A6F0A32C8.jpeg 26D9C280-B9C4-49BD-9498-FFA36B75CDC9.jpeg B9091CAE-9D56-4FBB-AE8E-986A6F0A32C8.jpeg A1AAD696-8C00-4CAC-8F1B-E1B2D6DF9C71.jpeg
Without a photo of the full rifle we can't tell if it has been cut down in length. The photo of the tang appears to show that it has been welded. Where is that odd brass piece set into the stock? -- it is not original to the rifle. Is the bore rifled or bored out smooth? All the things that have been done to this rifle reflect things done long after the Civil War.
