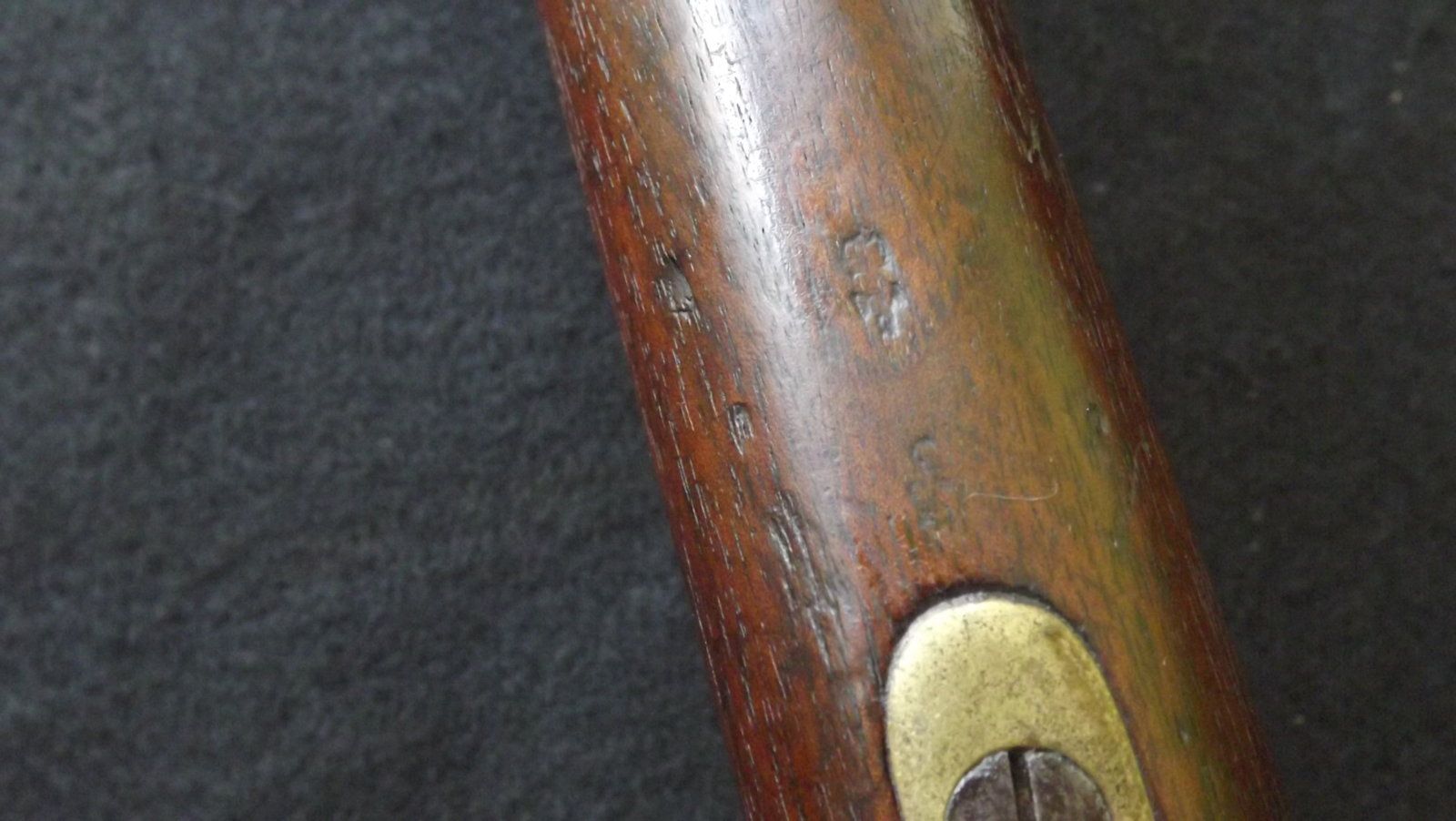

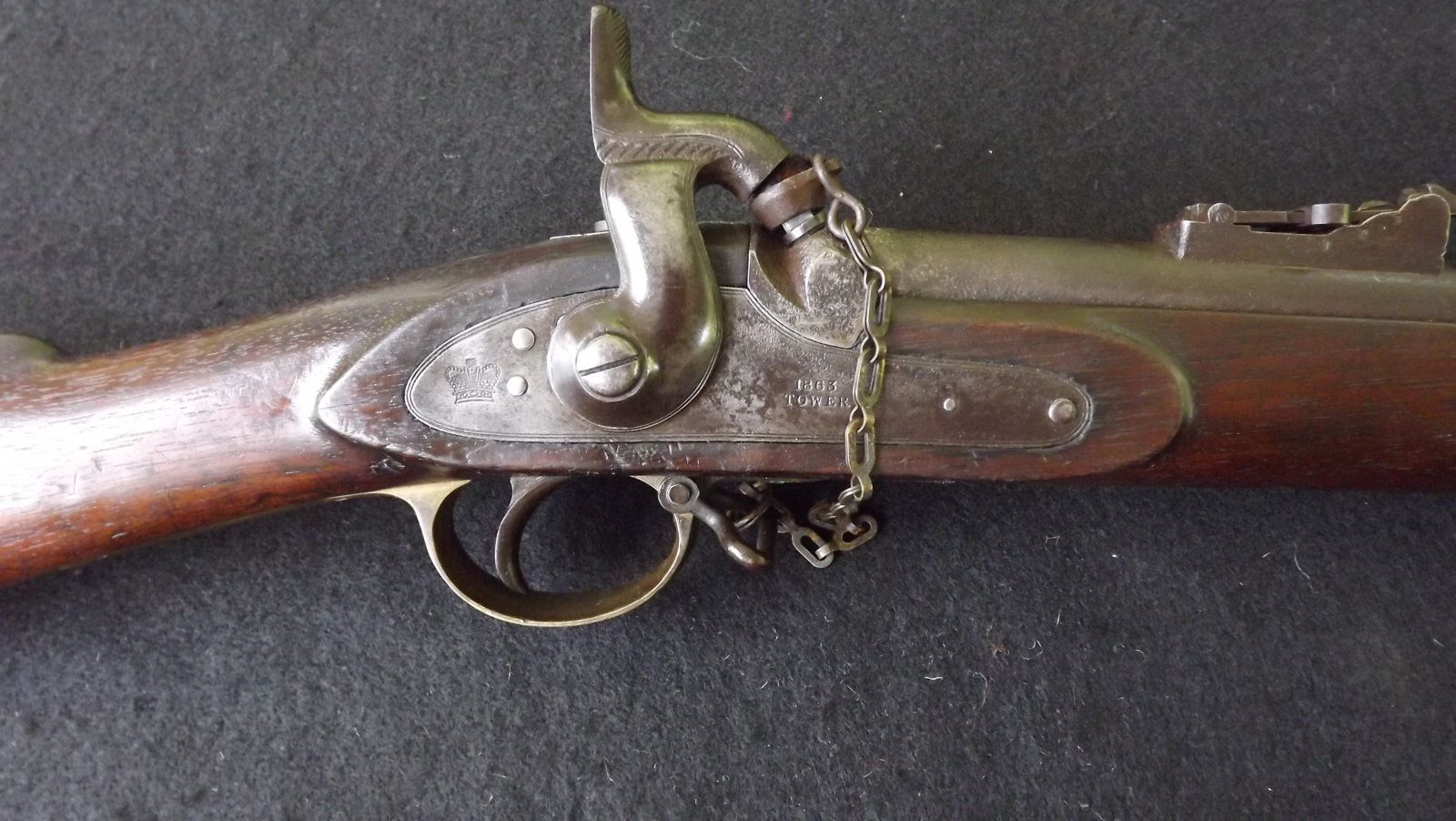

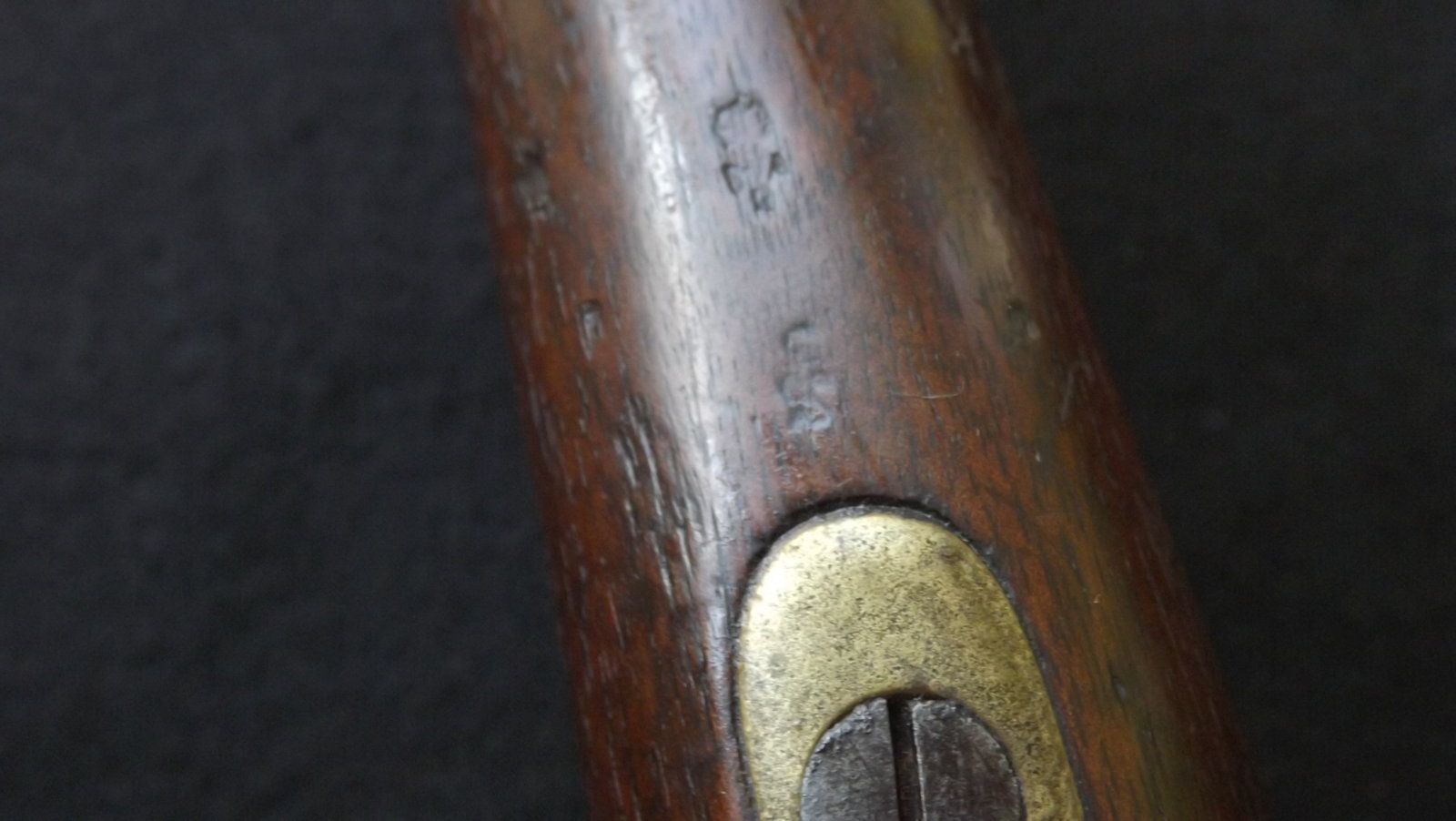

I am trying to ID two marks on an 1863 P-53. They are on the stock bottom next to the TG. This is an "Anchor over S" P-53 which was run through the blockade to Wilmington, NC. The barrel is marked on the underside "J.T." and also "Faulkner." The Lock is marked "JT' and also lightly "S&S."Also the ramrod has a small "s"
I have ID these marks but the two images by the TG are still a mystery. Could the larger one be the BSA logo?
Thanks so much for your help!





Fewer ads. Lots of American Civil War content!
JOIN NOW: REGISTER HERE!
Joined
May 1, 2015
Messages
8,796
Location
Upstate N.Y.
The roundel stamp near the butt is: Birmingham Small Arms Trade (BSTA) see page 21 & 99 in "The English Connection" by Russ Pritchard & C.A. Huey . Faulkner Brothers (David and Charles)were gun barrel manufacturers, see page 36. The JS over anchor is John Southgate (??) a London Armoury Co. viewer, see page 110. On TG , small crown over BSAT see page 154 Don't know other one. Chisel marks are assembly marks. Not everything, but hope it helps.


Package4

2nd Lieutenant
Joined
Jul 28, 2015
Messages
3,195
I am trying to ID two marks on an 1863 P-53. They are on the stock bottom next to the TG. This is an "Anchor over S" P-53 which was run through the blockade to Wilmington, NC. The barrel is marked on the underside "J.T." and also "Faulkner." The Lock is marked "JT' and also lightly "S&S."Also the ramrod has a small "s"
I have ID these marks but the two images by the TG are still a mystery. Could the larger one be the BSA logo?
Thanks so much for your help!

View attachment 319320

View attachment 319321
Those appear to be the Birmingham Small Arms trademark in the last picture and the anchor S is the inspector's mark and associated with the Confederacy, Faulkner is either the barrel manufacturer or rifler. @Lanyard Puller will be able to expound, no doubt.


hrobalabama

First Sergeant
Joined
Aug 12, 2014
Messages
1,361
Location
Andalusia, AL
The roundel stamp near the butt is: Birmingham Small Arms Trade (BSTA) see page 21 & 99 in "The English Connection" by Russ Pritchard & C.A. Huey . Faulkner Brothers (David and Charles)were gun barrel manufacturers, see page 36. The JS over anchor is John Southgate (??) a London Armoury Co. viewer, see page 110. On TG , small crown over BSAT see page 154 Don't know other one. Chisel marks are assembly marks. Not everything, but hope it helps.
Thanks!
