While the term 'sloped armour' hadn't been coined yet, did the Confederate Navy have a rudimentary understanding of the term when they designed the CSS Virginia?

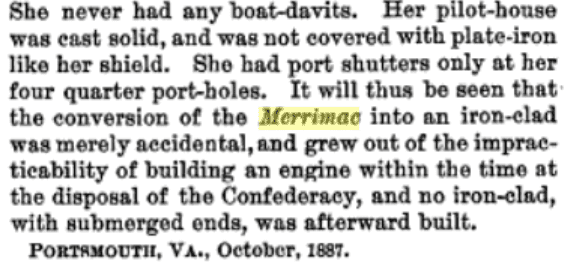

John L. Porter claims he first conceptualized an armored ship in the late 1840s after working on an iron hulled vessel. Here he describes the form of the amored casemate for the Merrimac's convertion in 1861-62.





In contrast to the Merrimac/Virginia's armor, the CSS Arkansas on the Mississippi River slab sides, but set at an angle, and "Well greased."

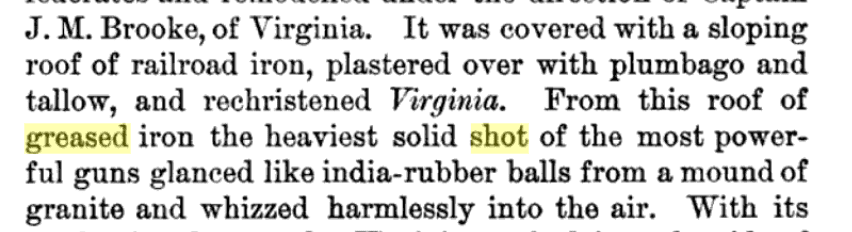

It was common for the Confederates to coat the casemates of their ironclads with greasy "slush" before a battle, to aid in repelling boarders and perhaps reduce the friction of glancing shot blows...

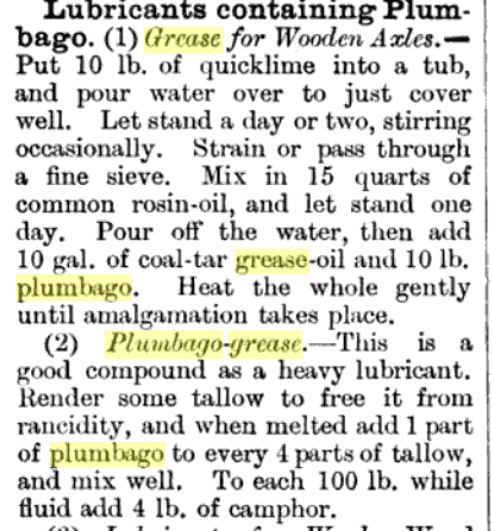

"Plumbago" was a heavy grease.










from Commander Parker, at Charleston:


Officially/technically, they are casemate ironclads, basically because it was just that - a floating casemate (a fortified gun emplacement or armored structure from which guns are fired, as part of a fortification) covered with iron plate.

From what I can gather, only the top half was ironclad, the hull beneath the waterline was not. Any ram was metal or metal-plated, but, it seems, the rest was not. Even the revolutionary Dunderberg had plate to just 5 feet below the waterline. One of the justifications for the low deck, apart from a small target, was that most of these vessels were for use on estuaries and rivers and many were converted river steamers, both side- and stern-wheelers.

Offshore ironclads had a higher freeboard to cope with the higher seas. These were NOT iron-hulled ships, but constructed of wood with iron plate on top. The first iron-hulled ironclad was the RN frigate HMS Warrior (1861), but with armor plate added on top of the iron hull. Having said that, all iron plates were backed with wood, often in a number of layers.

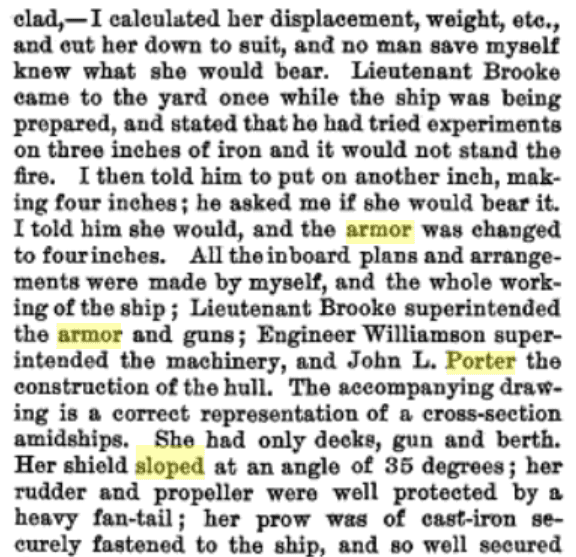

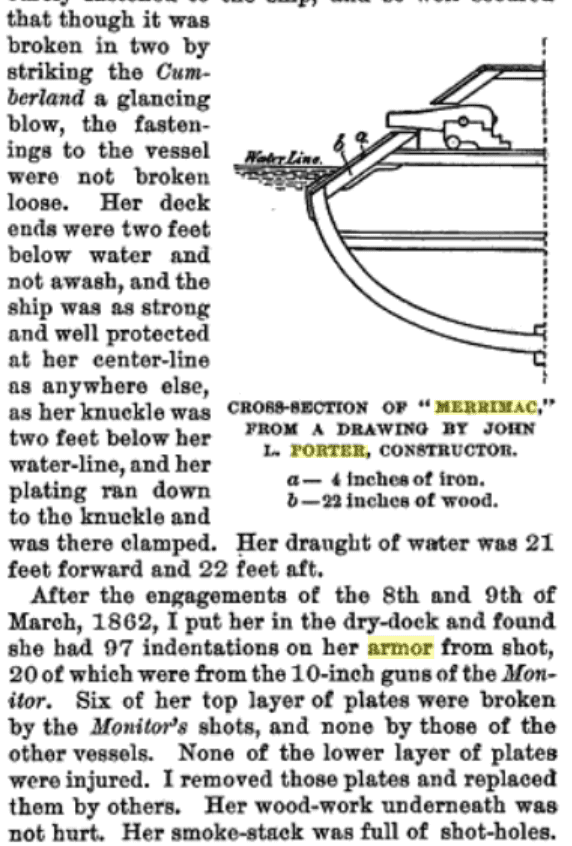

John L. Porter claims he first conceptualized an armored ship in the late 1840s after working on an iron hulled vessel. Here he describes the form of the amored casemate for the Merrimac's convertion in 1861-62.

View attachment 500259
View attachment 500260
View attachment 500261

In contrast to the Merrimac/Virginia's armor, the CSS Arkansas on the Mississippi River slab sides, but set at an angle, and "Well greased."

View attachment 500262

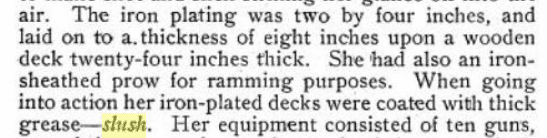

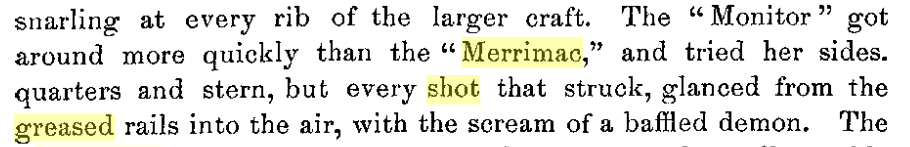

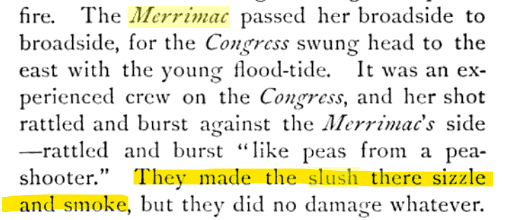

It was common for the Confederates to coat the casemates of their ironclads with greasy "slush" before a battle, to aid in repelling boarders and perhaps reduce the friction of glancing shot blows...


View attachment 500264



View attachment 500267

"Plumbago" was a heavy grease.

View attachment 500271



View attachment 500263

View attachment 500266

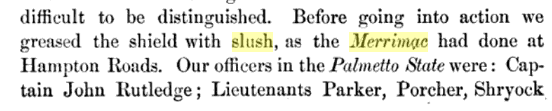

from Commander Parker, at Charleston:

View attachment 500265
It was not uncommon for USN gunboats to use slush on their casemates.

Clement H. Stevens (brother-in-law to the Generals Barnard and Hamilton Bee and later a CS general) designed an ironclad floating battery with sloped sides that was one of the encirclement of Fort Sumter. It was supposedly this sloped iron battery that gave "someone" the idea which was later adapted for the CSS Virginia's casement.
