Rear sight ID

[ewmail15]

Can anyone ID this rear sight - Enfield? Year/model? I think I've seen the screw type on some Enfields recently. Maybe it'd be a good addition for a future project.



[plymouthairrifle]

Looks like a Joslyn



[JOHN42768]

Here is a Joslyn 1864



[Jobe Holiday]

Looks like a plain ordinary Model 1861 Rifle Musket sight to me.
J.



[Cpl. Smith]

Looks like a plain ordinary Model 1861 Rifle Musket sight to me.
J.

I think your right. Definitely not a enfield. Never seen an enfield with a sight like that.



[plymouthairrifle]

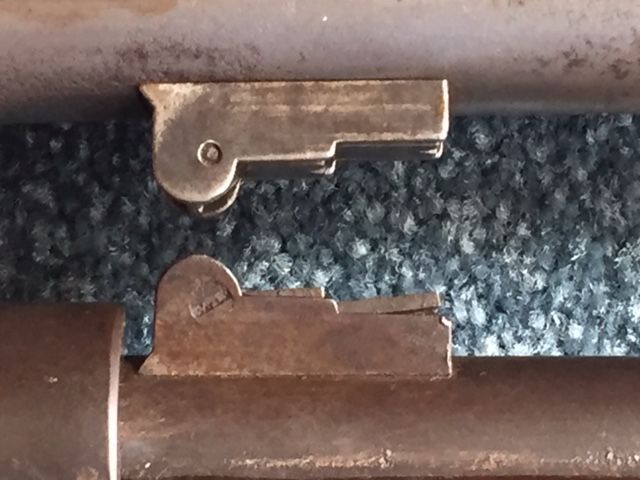

Here are some photos of my 1863 Springfield and my Joslyn rear sights.



[ewmail15]

What do the screw heads look like under the 500 yard sight? The one on eBay has a special type that requires some special tool to tighten/loosen, like a golf shoe spike. What's the screw type called? I can't make out 3 or 5 or whatever on either sight leaf.



[plymouthairrifle]

Both have a round screw head with 2 holes.



[Jobe Holiday]

Yes, Joslyn used the M-1861 rear sight, with protective ears and flush screw head. I called it a M-1861 sight because Springfield developed it for the M-1861 Musket. Joslyn used it because it was the most common sight available on the open parts market without having to tool up to make one of their own.

PS - I had meant to add that the sight base mounting screw is known as a "Spanner Screw". If you ever have the need to remove, or install one, the easiest way to make a spanner wrench for it is to take a common flat blade screw driver and grind out the center leaving two pins on the outer edges to match the holes in the top of the screw head.
J.



[Cpl. Smith]

Yes, Joslyn used the M-1861 rear sight, with protective ears and flush screw head. I called it a M-1861 sight because Springfield developed it for the M-1861 Musket. Joslyn used it because it was the most common sight available on the open parts market without having to tool up to make one of their own.
J.

Learning every day.



[ewmail15]

https://m.ebay.com/itm/Springfield-...rentrq:4278c44a1630aa4847cddaa1fff79c53|iid:1



[plymouthairrifle]

I never noticed that my Gibbs carbine also has the Springfield rear sight.
