OHIO Marked Arms

Discussion in 'Civil War Weapons and Ammunition' started by vmicraig, May 14, 2018.

  1. vmicraig

    vmicraig Corporal

    Joined:
    Mar 12, 2018
    Messages:
    292
    Location:
    Mobile, AL
    A long but detailed read by Donald Hutslar direct from American Rifleman magazine, November, 1968 regarding OHIO marked arms. OHIO stamps were used as markings over a span of 60 years and were included on a large variety of weapons and accoutrements. (picture follows post)

    Screen Shot 2018-05-14 at 9.53.28 PM.jpg

    A die-stamped OHIO mark is occasionally seen on US and foreign military firearms and accouterments dating from the first three-quarters of the 19thcentury. An explanation of the mark is fairly simple and obvious: An arm bearing the mark OHIO was originally owned by the State of Ohio and was so marked while in the State Arsenal. What accounts for the relatively large quantity of these arms found today is the condition of the militia system, not only in Ohio, but throughout the US prior to the ACW.

    Writing in a history of Clark County, Ohio, published in 1881, an unnamed contemporary observer tells the following story of the period around 1830:

    The law demanded that every able-bodied citizen of the state should ‘perform’, etc; also, that he, the said citizen, should be armed with a ‘good and sufficient musket, fuse, or rifle,’ and regulations defined ‘good and sufficient’ to include ‘lock, stock, barrel and ramrod.’ The men were each armed with any kind of firelock that would pass muster; old, worn out, and broken guns were called into use to supply the demands of the law, which in its majesty defined what should compose a gun.”

    “One case is related of a man who appeared with an ancient horse pistol, minus the lock, but with a huge padlock fastened on in its place, and a broomstick driven into the muzzle to make the weapon long enough to be handled to good advantage. This ‘rig’ was objected to…and the soldier was sent before the proper authorities to answer. The court decided that the man had furnished all the law required, viz, lock, stock, barrel, and ramrod, and let him off without fine. This decision was fatal to discipline, as the next muster found half of the men present with only pocket pistols with sticks driven into them.


    Very probably the vast majority of Ohio Firearms now seen were stolen or borrowed from militia company arsenals. Consider these rather extraordinary facts: As of March, 1859, and beginning in 1808, the State of Ohio had received from the US Government, in muskets or their equivalent, a total value of $807,593, which was rated at 62,993 muskets. Military companies throughout the US had been bonded for only $17,760 worth of arms, including several cannon, and the Quartermaster General had $37, 322 worth of arms, including several cannon, under his charge. Other unbonded arms scattered throughout the State were known and estimated to be worth $97, 470. Consequently, from 1808 until 1859, Ohio had had stolen, lost or ruined by neglect $655,025 worth of Arms.

    Arms Issued Under Militia Act

    In 1808 Congress passed the Militia Act providing for the distribution of arms to the states and territories proportionate to the number of effective militiamen in each defined area. In 1855 Congress revised the law, basing the distribution of arms on the number of Representatives and Senators furnished to Congress by each state and territory. Any type of arm manufactured by the Federal Government could be selected to fill the quotas.

    Prior to 1856, there were no officers in the Ohio Militia empowered to requisition or even oversee firearms. The Ohio legislature, in 1856, passed a law making county sheriffs responsible for arms and accouterments belonging to the state, except those in the hands of organized volunteer companies. Following the passage of the law, The Quartermaster General of Ohio, Alex E. Glenn, queried various sheriffs on the condition of public arms in their respective counties. Glenn’s summary was published in his Annual Report to the Governor of Ohio for the Year 1856, the summary said:

    Responses have been received from many of the counties, and the information received shows that in but very few counties are there any regularly organized and effective volunteer companies. In nearly every county, there are more or less public arms, scattered here and there; some in possession of private individuals, some stored away, and great numbers have been carried off, or destroyed. In a word, all the information received goes to show that there has been a very great want of care of the public arms, and thousands upon thousands of dollars worth have been either destroyed, carried off, or suffered to become worthless….There are instances where arms have been sent from the Arsenal, and never used, and remain in boxes, or are stored in warehouses, no company ever having taken charge of them. There are arms, also, in possession of companies having no right to them.”

    Some 210 Colt revolvers had been received at the arsenal between 1850 and 1855. When Glenn made his inventory in March 1856, only 20 were accountable. Twenty six were recovered from unauthorized persons in Franklin County by Glenn. The Quartermaster General concluded his Annual Report by stating that all arms should be sold that were not fit for service; and that the entire militia system in Ohio should be reorganized, including the proper care of public arms, or be abandoned completely.

    The State Legislature finally acted on the matter in March 1859 and the new Quartermaster General, D.L. Wood, attempted to find and reclaim all the public arms, reissuing them under bond to recognized militia companies; he had little success and apparently a great deal of trouble. The Adjutant and Inspector General of Ohio, H.B. Carrington, praised Wood’s efforts highly, and recommended a salary increase. Interestingly, the Quartermaster General received a small annual salary, and he was expected to supplement his income by repairing broken arms in the arsenal on a piecework basis. This represented a transitional period in the functions of the Quartermaster General from armorer to administrator.

    Wood published a detailed accounting of all stores held by the state arsenal in his report in 1860. From 1808 through 1860, the Federal Government had issued Ohio 27,967 muskets. Wood could only account for 5204 in the entire state. Of the 6995 rifles issued, only 1023 remained. Musketoons: 100 issued, 98 remained (apparently no civilian use could be found for Musketoons). Carbines: 363 issued, 150 remained. Cavalry pistols: 11,632 issued, 722 remained (perhaps this accounts for the scarcity of non-military single-shot pistols in Ohio during the 19thcentury). Colt revolvers: 272 issued, 42 remained.

    Obviously, with the outbreak of the Civil War, the entire supply problem changed, as did the entire militia system. The records became too vast and complicated to treat simply. Ohio bought and continued to be issued quantities of arms for its federalized state militia units.

    An invoice of ordnance was taken on November 15, 1866, ostensibly to meet the requirements of a Joint Resolution by the State Legislature requiring the sale of surplus ordnance stores. It was the duty of the Adjutant General to collect the ordnance stored in the hands of the State Militias, now called the Ohio National Guard. Some material had been sold between April 2 – Nov 15 and included 980 Harpers Ferry rifles at $0.75 each; 160 US rifles at $1.00 each; 2430 Austrian rifles at $0.90 each; 3899 US Smooth Bore Muskets at an average price of $0.70 each; 3960 Prussian Muskets at $0.75 each; plus other miscellaneous firearms and ammunition.

    The invoice of Nov. 15, 1866 reveals the quantity of firearms had been reduced significantly, though the Arsenal still retained a great number of altered US Flintlock muskets and French rifled muskets. Apparently the Arsenal had tried to retain at least one model of every type of firearm issued during the Civil War, especially carbines, because 28 different models and makes of firearms were still inventoried. One year later, the variety of firearms had been reduced to 24, with only the French rifled muskets held in any quantity. There were still 284 undesignated US flintlock rifles.

    The authority to dispose of public arms by the State Arsenal was revoked by a joint resolution of the Ohio General Assembly on Apr. 25, 1868. Hundreds of firearms were still in the hands of National Guard units, and the Adjutant General in his Annual Report for 1868 wondered how to return the arms to the state arsenal. He also wondered just what to do with the enormous stores still held by the state. Not many firearms remained in the Arsenal, but there were a great many quantities of accouterments, camp equipment, cannon and artillery paraphernalia. The Adjutant General felt there was no need for the large quantity of material in storage, for there was only a small militia force left and it would probably not be enlarged in the forseeable future.

    The Adj. General wrote to the Chief of Ordnance, US Army, requesting permission to return the all the stores over the official quotas assigned the State. In a letter dates Dec 1, 1868, the Ordnance Officer agreed, but by 1871, the stores had not been returned, and the Ohio House of Representatives unanimously voted to authorize the sale of these stores. The Senate unfortunately postposed the action and the resolution failed to become law. The State Arsenal still had in its possession a large variety of Civil War firearms that it had inventoried soon after the war was over. In fact, the same 284 flintlock muskets remained.

    The following 2 years found another Adjutant General, William Knapp, valiantly attempting to rid himself of the obsolete firearms and accouterments. Two minor robberies helped reduce the inventory slightly, probably to Knapp’s relief. Until 1881, the muzzle loading inventory fluctuated up and down as National Guard units returned obsolete firearms in return fro breech loading rifles. The muzzle loaders were in turn issued to newly-formed units or to veteran organizations, principally the Grand army of the Republic, or GAR.

    In 1881, an appointment of a Board of Survey was approved to act on the obsolete firearms. The Board recommended the sale of the condemned material and the Adjutant General was able to call in practically all muzzle loading firearms from local units. In 1881, all Ohio units were fully equipped with Breech loading rifles.

    It’s obvious from the readings of the annual reports submitted by the various Adjutant Generals that none knew exactly what stores were held by the State of Ohio. It seemed as soon as inventory dropped, arms from defunct and forgotten militia units would be turned in. The confusion of wartime was in part responsible for the lack of records. However, the militia system both before and after the Civil War was poorly managed and units could be formed, authorized by the State, then disband and disappear without a single state official aware of the fact. Naturally, the arms and accouterments shared the same fate. This accounts for the wide disparity of inventories of ordnance stores published in the Annual Reports.

    At the end of the Civil War, there were thousands of men in Ohio Militia units who were waiting to be sent to the fighting areas. The veterans were discharged as quickly as possible, By Apr. 1866, a few companies were legally retained in service and operated under the old designation of “militia”, but had generally come to be known as the Ohio National Guard, a term first making its appearance during the war.

    To summarize, it was the duty of the Ohio State Arsenal, under the supervision of the Adjutant General, to purchase firearms and accouterments from the federal government through a yearly monetary allotment. The State Arsenal was then responsible for the distribution of these “public stores” to authorized volunteer militia units throughout Ohio. Beginning in 1808, this system worked with reasonable efficiency during periods of emergency, ie: the War of 1812, the Mexican War, and the Civil War, but was allowed to all but disappear in the intervals of peace. Since several variations of the die-stamped OHIO appear on firearms and accouterments, its logical to assume that the greatest periods of effectiveness and adherence to regulations by the State Arsenal also occurred during periods of emergency. The practice of marking Ohio Militia arms probably ceased during the Civil War, simply through an inability to mark the tens of thousands of them passing into the hands of troops.

    The material was marked over a span of 60 years and is proven by the range in age of the objects illustrated for this story. Arsenal employees could have marked everything held in storage at one particular time, for example, in 1859, when an attempt was made to bring the inventory up to date. However, it is highly doubtful that such a course of action was taken.

    The State Arsenal sold privately, not by public auction, great quantities of muzzle-loading firearms after the Civil War. Whether the Arsenal removed its mark, if present, is not known. Since the sales followed the war by several years, probably little marked material remained. Owners of legally acquired OHIO arms probably removed the markings in many instances.

    A question has been raised whether the mark OHIO represents approval by an inspector, state ownership, or both. It is doubtful that the State of Ohio would appoint an inspector to approve arms already approved by the Federal Government; an inspector’s position does not appear in the annual reports of the Adjutant General. A logical assumption is that the mark OHIO simply implied state ownership.

    Many OHIO marked firearms appear on the market today, particularly the M1808 Harpers Ferry Musket. The majority of the pre-Civil War equipment was probably “borrowed” indefinitely by citizen-soldiers. Civil War arms were retained by some militia-men. A small quantity of marked equipment can be assumed to have reached private hands through sale. Perhaps the most interesting feature of these arms is that many varieties of foreign arms, which generally sell at low cost, can be purchased; and, if they bear the OHIO mark, the collector can be assured of owning a legitimate martial arm used in the US during the muzzle-loading period.

    Last edited: May 15, 2018
    drezac, WJC, captaindrew and 3 others like this.

  2. (Membership has it privileges! To remove this ad: Register NOW!)
  3. vmicraig

    vmicraig Corporal

    Joined:
    Mar 12, 2018
    Messages:
    292
    Location:
    Mobile, AL
    Ohio marked M1854 Lorenz


    James N., WJC, captaindrew and 2 others like this.
  4. Lanyard Puller

    Lanyard Puller Corporal

    Joined:
    Nov 29, 2017
    Messages:
    283
    Location:
    South Carolina
    Craig,
    Great post.
    Now a puzzle for you;

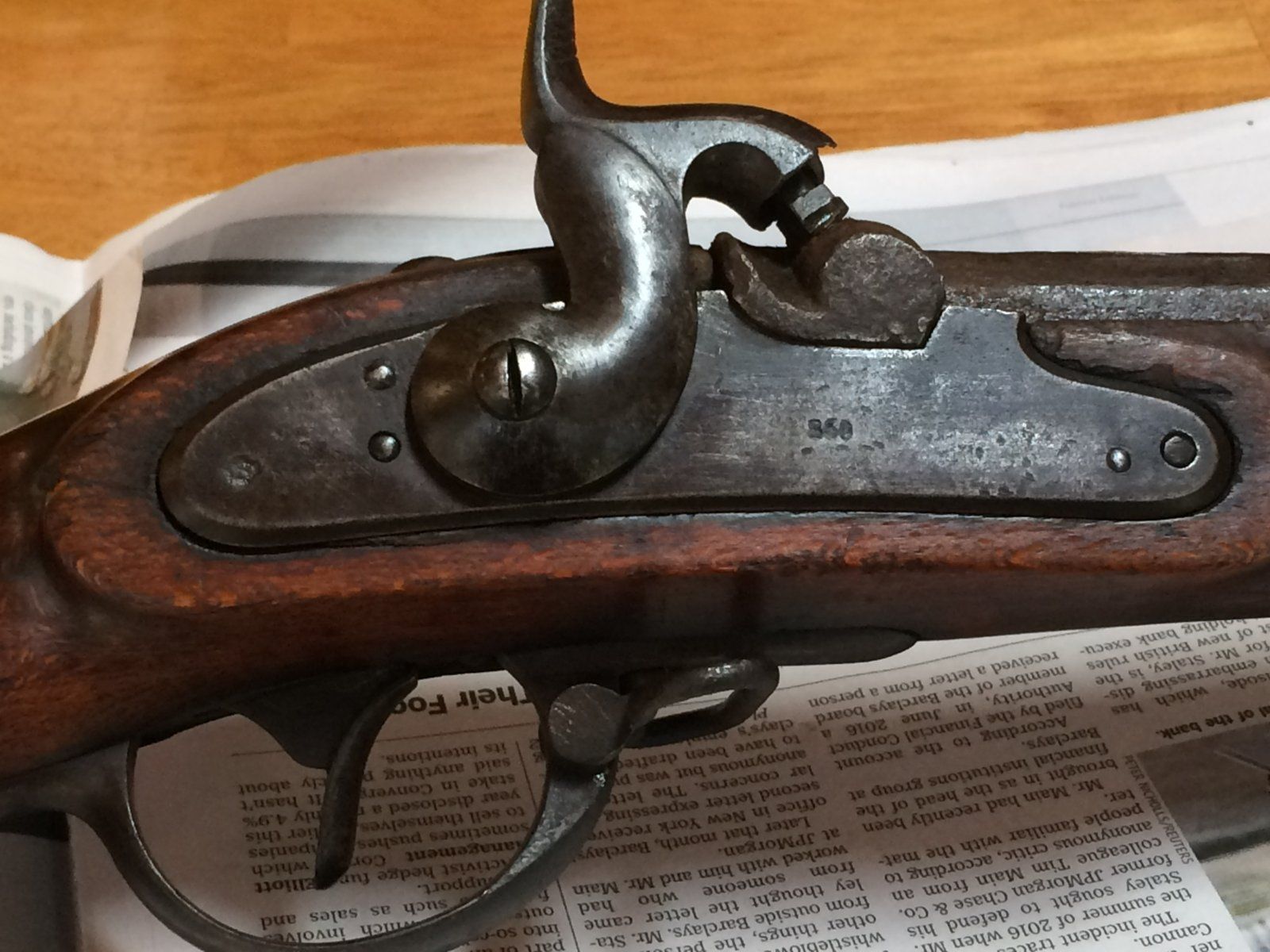

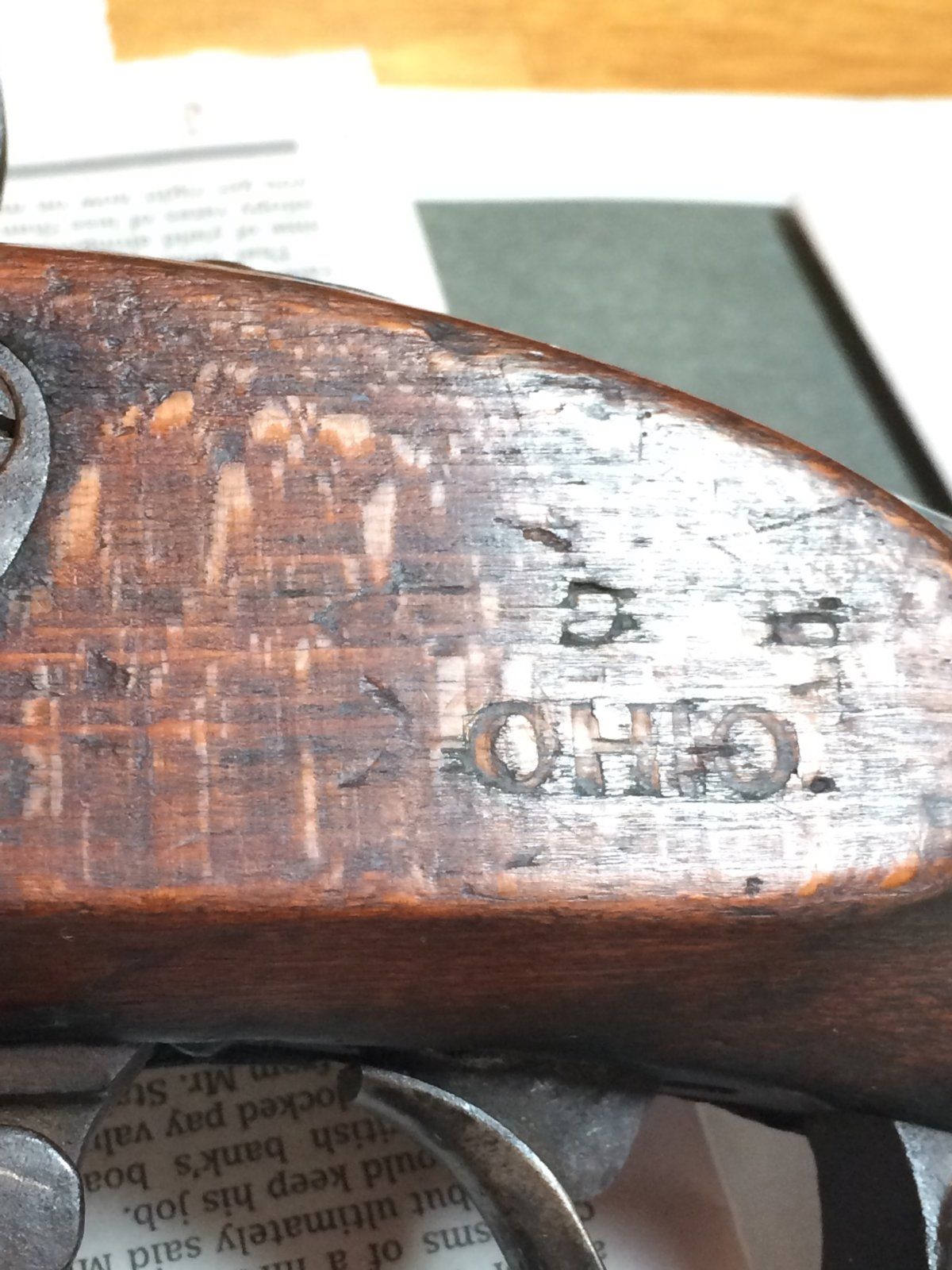

    I also have an "860" "OHIO" stamped Lorenz.

    It also has a perfectly stamped Georgia "G" on the right butt stock {Yes they did get them}

    It also has a Texas soldier's ID and tons of family provenance.

    So, what was the chain of ownership ??

    WJC and vmicraig like this.
  5. Cpl. Smith

    Cpl. Smith Sergeant

    Joined:
    May 1, 2018
    Messages:
    662
    This is really cool!

    vmicraig likes this.
  6. vmicraig

    vmicraig Corporal

    Joined:
    Mar 12, 2018
    Messages:
    292
    Location:
    Mobile, AL
    Not sure about that since it could’ve been either way. Perhaps Don dixon might have more info - he’s an expert when it comes to Lorenz rifles.

  7. Cpl. Smith

    Cpl. Smith Sergeant

    Joined:
    May 1, 2018
    Messages:
    662
  8. vmicraig

    vmicraig Corporal

    Joined:
    Mar 12, 2018
    Messages:
    292
    Location:
    Mobile, AL
    Lanyard, My guess is it was One of the many that eventually ended up in the Ohio inventory After service elsewhere, but who knows? Perhaps someone who is an expert on the transfer of weapons among confederate states Or their subsequent capturing or collection by Union forces might have a better idea.

    Cpl. Smith likes this.
  9. vmicraig

    vmicraig Corporal

    Joined:
    Mar 12, 2018
    Messages:
    292
    Location:
    Mobile, AL
    Likely a union import that ended up in the arsenal. Doesn’t show any of the typical stamps of a confederate import.

  10. Cpl. Smith

    Cpl. Smith Sergeant

    Joined:
    May 1, 2018
    Messages:
    662
    I know that a lot of confederates would trade up to a better gun.

  11. Lanyard Puller

    Lanyard Puller Corporal

    Joined:
    Nov 29, 2017
    Messages:
    283
    Location:
    South Carolina
    We'll never know where this well traveled rifle {mine}
    started its adventure, but she certainly "Saw the elephant"

    vmicraig and Cpl. Smith like this.
  12. Package4

    Package4 2nd Lieutenant Trivia Game Winner

    Joined:
    Jul 28, 2015
    Messages:
    2,554
    or at least a "hippo"

  13. vmicraig

    vmicraig Corporal

    Joined:
    Mar 12, 2018
    Messages:
    292
    Location:
    Mobile, AL
    After thinking about it, is the G on the buttstock the typical large G or the smaller G stamped sideways on the obverse of the buttstock? Per other reports, the letter is approximately .35” tall and .25” wide. This same pattern and size of “G” stamp has been noted on a handful of other arms, including a P-1853 rifle musket and an unmarked Model 1840 Light Artillery saber. It is generally believed, within community that is heavily involved with researching the imported arms used by the Confederacy, that the arms marked with this non-standard, small “G” were Georgia used / purchased arms which were marked after they arrived on Southern soil. The larger, better known, “Georgia G" found on Confederate imported Enfield's (not sure about Lorenz's) are thought to have been applied while those guns were still in England. So with that said, perhaps the original owner was GA, after which during some point it wound up in TX. Perhaps an arms shipment from GA to TX without any service in GA if no small G is present? Again, not sure if this applied only to Enfield or perhaps to Lorenz models also. Still a guess as to when and how it ended up in Ohio.

  14. ucvrelics.com

    ucvrelics.com 1st Lieutenant Forum Host

    Joined:
    May 7, 2016
    Messages:
    4,705
    Location:
    Alabama
    Fascinating read. Thanks for posting.

    vmicraig likes this.
  15. drm2m

    drm2m Private

    Joined:
    Oct 22, 2010
    Messages:
    220
    Location:
    Quebec
    Thanks for this tread.
    The different OHIO markings shown include the Ohio marking shown (in red) on my M1816 Springfield musket.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    James N., tbuckley, WJC and 1 other person like this.
  16. vmicraig

    vmicraig Corporal

    Joined:
    Mar 12, 2018
    Messages:
    292
    Location:
    Mobile, AL
    Pretty gun! And it well illustrates the span of years that Ohio marked their inventory.

  17. WJC

    WJC Moderator Moderator

    Joined:
    Aug 16, 2015
    Messages:
    8,445
    Thanks for sharing this information, new to me!

    vmicraig likes this.
  18. Larryh86GT

    Larryh86GT First Sergeant

    Joined:
    Jan 20, 2018
    Messages:
    1,194
    Location:
    Near sunny Buffalo New York
    Thanks for the info. I certainly would not mind owning one marked OHIO.

    vmicraig likes this.
  19. cwbuff

    cwbuff Private

    Joined:
    Dec 21, 2010
    Messages:
    190
    Location:
    Virginia
    US M1795 Harpers Ferry (War of 1812). OHIO on barrel, OH on stock.
    M1795 Harpers Ferry 007.jpg
    M1795 Harpers Ferry 010.jpg

    WJC, James N. and vmicraig like this.
  20. drezac

    drezac Sergeant

    Joined:
    May 4, 2014
    Messages:
    532
    Location:
    1/2 way between Sherman and Sheridan, Rushville OH
    I have been researching the history of the 4 original cannon at the Ohio State house in Columbus. Here is what I can add regarding OHIO marked arms.

    It was the practice of the Ohio arsenal to mark anything they could with OHIO. the arsenal inventory includes OHIO stamps. It can be found on the muzzles of artillery, barrels and lock plates of muskets, and anything else that they could stamp.

    Some background on Ohio arms.

    At the beginning of the war, the Ohio militia was in very poor condition. Due to many deficiencies, it was for the most part useless as a military organization. One of the major problems was arms. Ohio had not been purchasing new equipment for the militia, and the accountability for what they did have was useless, with the Ohio Adjutant General stating ( may not be exact, don't have my notes) "Arms are issued on bond to regiments that dwindle away and their condition is not known for years later, after which the bondsmen have either died, moved away, become insolvent, or plead ignorance due to the actions of officers over which they had no control, relieving them of responsibility. I have as of yet to ascertain that a single dollar has been paid on bond, yet $600,000 of arms have been lost to the state". Ohio could not be sure of what they had or if the militia even had the arms they were supposed to have. So you have a large number of pre-war arms, all marked OHIO, that can not be accounted for.

    In 1863, the process began to reorganize the militia to fix the deficiencies, and create a new military organization that would be named the Ohio National Guard. No progress was made, as the citizens of Ohio did not believe the new organization was needed, plus the lack of arms made many reluctant to form the new regiments. The governor of Ohio gave assurances that he could obtain arms from the US Government, but progress was still slow until Morgans Raid. Due to the deficiencies, the militia failed and was unable to protect Ohio, one of the major problems was a lack of arms - many reported to duty unarmed. Due to the states providing arms for troops going into federal service at the beginning of the war, the Ohio arsenal was empty, and the militia could not be armed. After Morgans raid, the citizens of Ohio now realized the need for the new military organization, and progress was quickly made.

    Ohio was able to obtain obsolete but serviceable arms from the US Government. These arms were of assorted caliber, many of them smooth bores, and imported converted flintlocks. (Prussian muskets are one example of what they obtained). All of these would have been stamped OHIO

    So to sum it up:

    There is a very large but unknown number of pre-war arms marked OHIO that can not be accounted for.

    By mid 1863, Ohio had emptied it's arsenal for troops going into Federal service, sending nearly all functional muskets and 39 6-Pdr field guns. All of these arms would have been marked OHIO. None of these arms were returned to Ohio, and can not be accounted for.

    In 1863, Ohio obtained $179,000 of Obsolete arms from the US Government for the Ohio National Guard, all marked OHIO. These were eventually sold off as excess property by the state arsenal.

    WJC, James N., tbuckley and 3 others like this.
  21. O' Be Joyful

    O' Be Joyful Sergeant Major

    Joined:
    Mar 6, 2015
    Messages:
    2,240
    drezac after reading your post I remembered this mention in the O.R. of a request by Ohio (it looks to be an internal request forwarded to Floyd) for arms and friction primers, etc. to the War Dept. in Nov. 1860. You likely have already have seen it, but just in case.

    HDQRS. OHIO MILITIA AND VOLUNTEER MILITIA, QUARTERMASTER-GENERAL’S OFFICE, Columbus, November 6, 1860.

    Hon. S. S. Cox, Columbus:

    DEAR SIR: When we made this year’s requisition on the General Government for our quota of arms as usual, we applied for friction {p.5} primers and Maynard primers-articles that were furnished us last year. The Ordnance Department advised me that we could not be furnished with them, but suggested they might be had of the Government by purchase. My object in addressing you is to desire you to recommend to the Secretary of War to issue an order to the Ordnance Department to supply our State with these articles and such small lots of fixed ammunition as we may be in want of-if possible on our quota of arms, or by purchase. And you will much oblige this department.

    Respectfully, yours,

    D. L. WOOD, Quartermaster-General of Ohio.

    [Indorsement.]

    COLUMBUS, OHIO, November 16, 1860.
    --------------------------------------------------
    Hon. J. B. FLOYD, Secretary of War:

    DEAR SIR: Can the order within asked for by the Ohio quartermaster-general, Wood, be complied with? If so, it will oblige,

    Yours, &c.,

    S. S. COX.

    http://www.simmonsgames.com/research/authors/USWarDept/ORA/OR-S3-V1.html
    To your point that the Ohio militia system and arsenal were in disarray, if you scroll down you will find a report of available arms from every state, including those that about to secede, but Ohio is noticeably absent.

    WJC, tbuckley, Cpl. Smith and 2 others like this.
