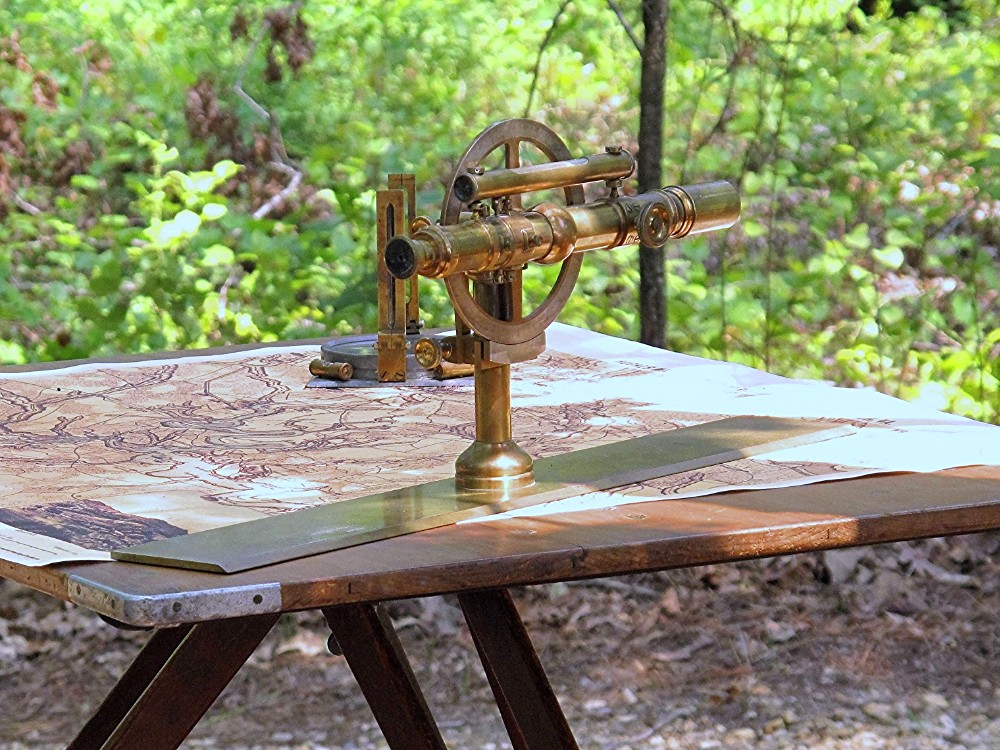

A fairly accurate topo map can be made with an alidade and plane table. Did this a few times in my "reenacting career"-
Very cool piece of equipment.A fairly accurate topo map can be made with an alidade and plane table. Did this a few times in my "reenacting career"-
View attachment 404333
I'd love to see some of your guys demonstrate the use of these instruments. In a way, it reminds of the way that seaborne vessels used triangulation to locate their position using sextants to measure the angles of the sun, moon and planets.View attachment 404307
Lookout Mountain from the porch at Sugar's BBQ on Missionary Ridge.
How would you make a map of what you are seeing?
View attachment 404293
View attachment 404290
In answer to a private message, "How did they do it?"
The answer was a Civil War GPS in the palm of their hand.
View attachment 404288

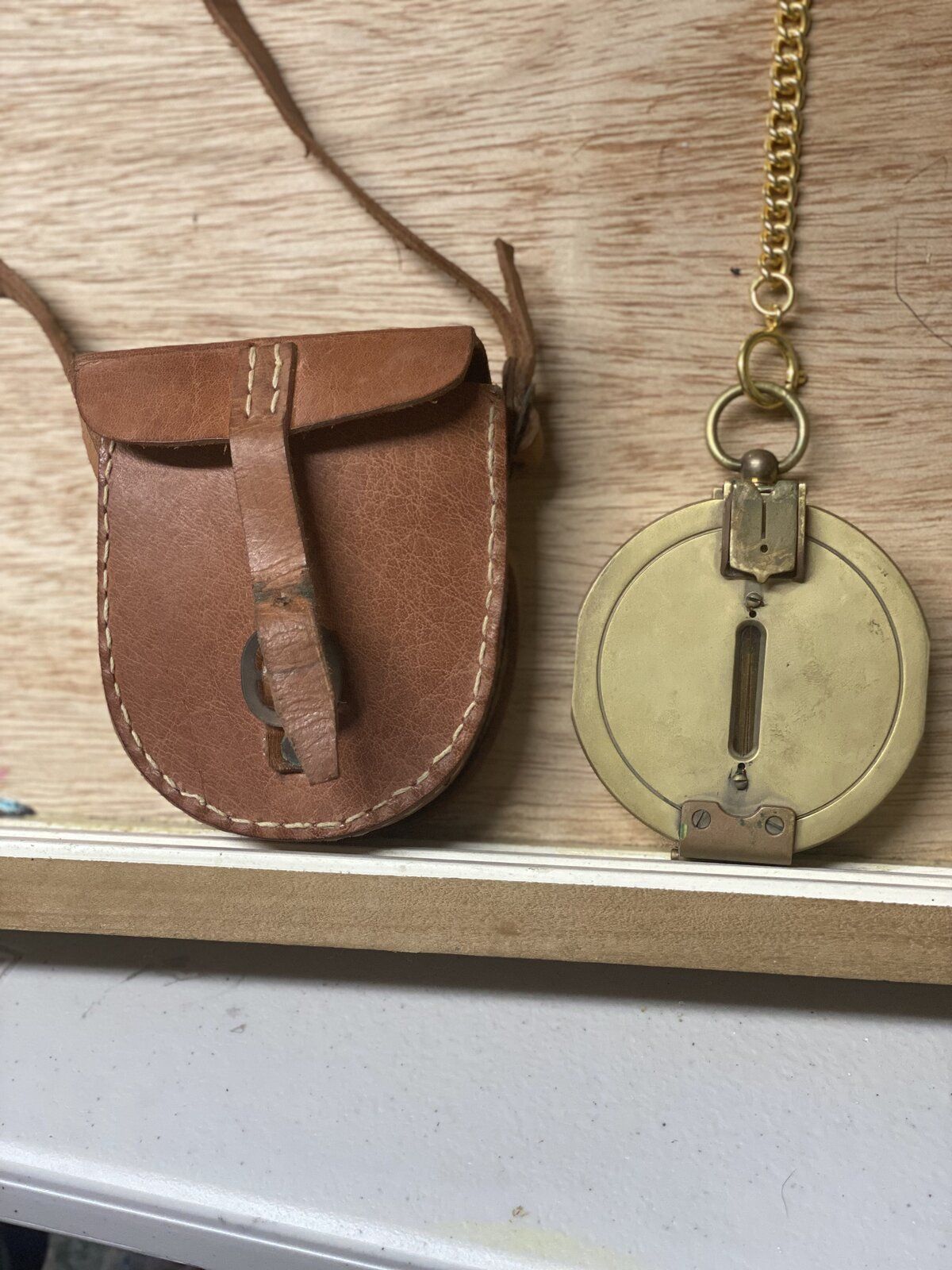

This modern sighting compass is identical to the ones carried by Civil War soldiers.
Note the flat spots at 3:00 & 9:00 on the case. They allow it to be set on a level surface.
View attachment 404326

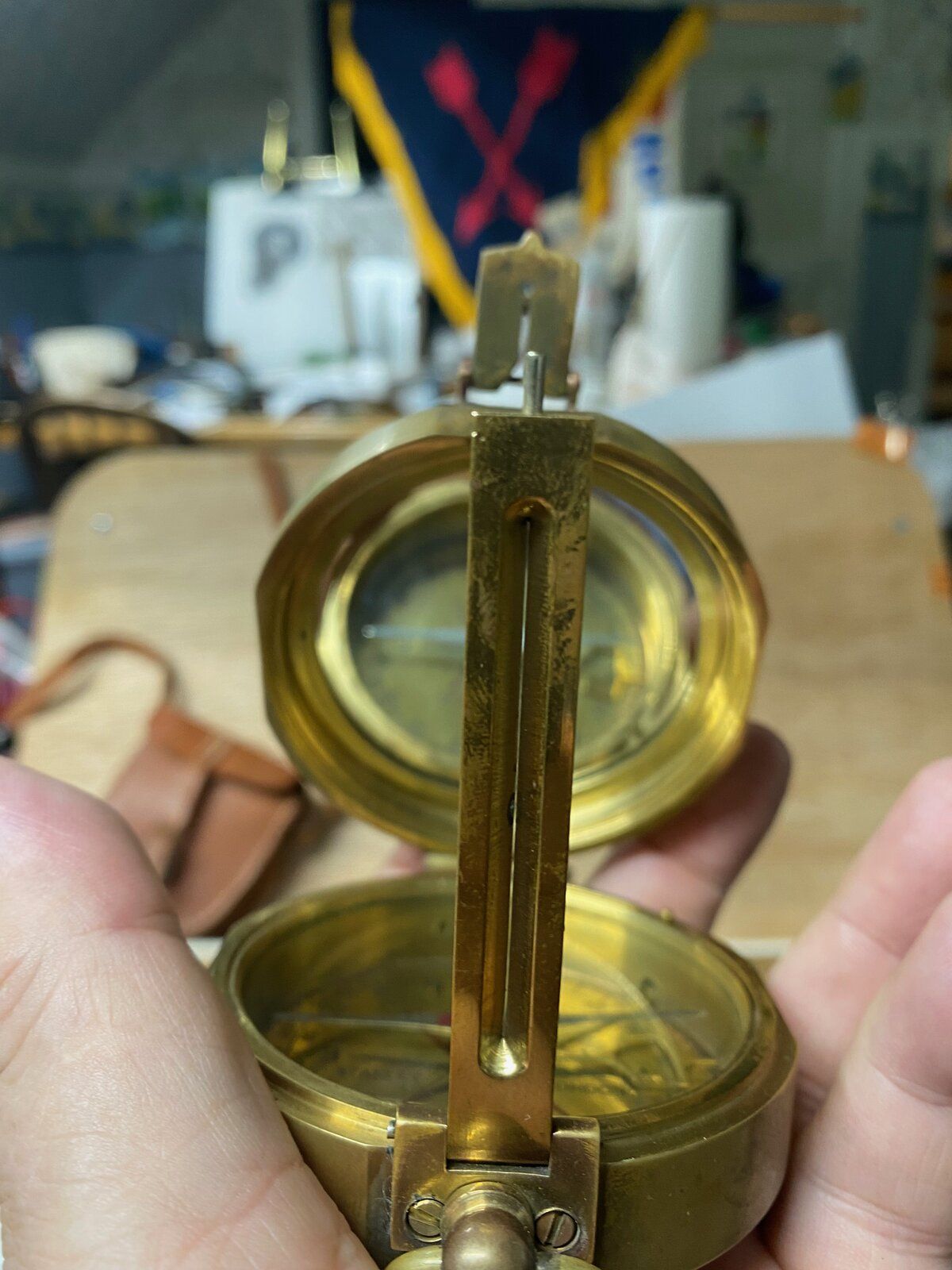

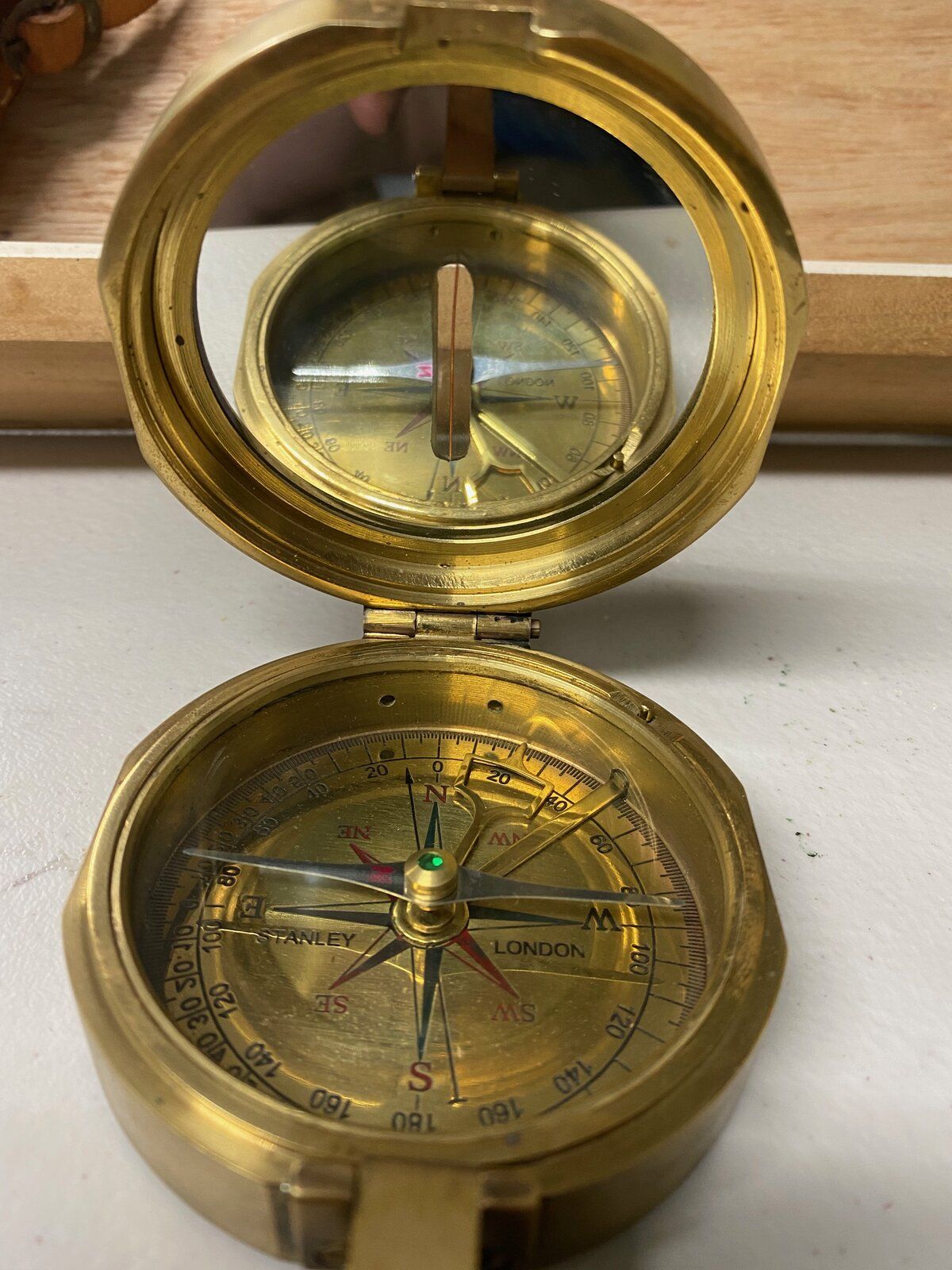

Notice that the compass is designed to be read in the mirror.
You aim at a point & use the lever visible in the 2:00 position to lock the compass needle in place.
It make it easy to write down the result.

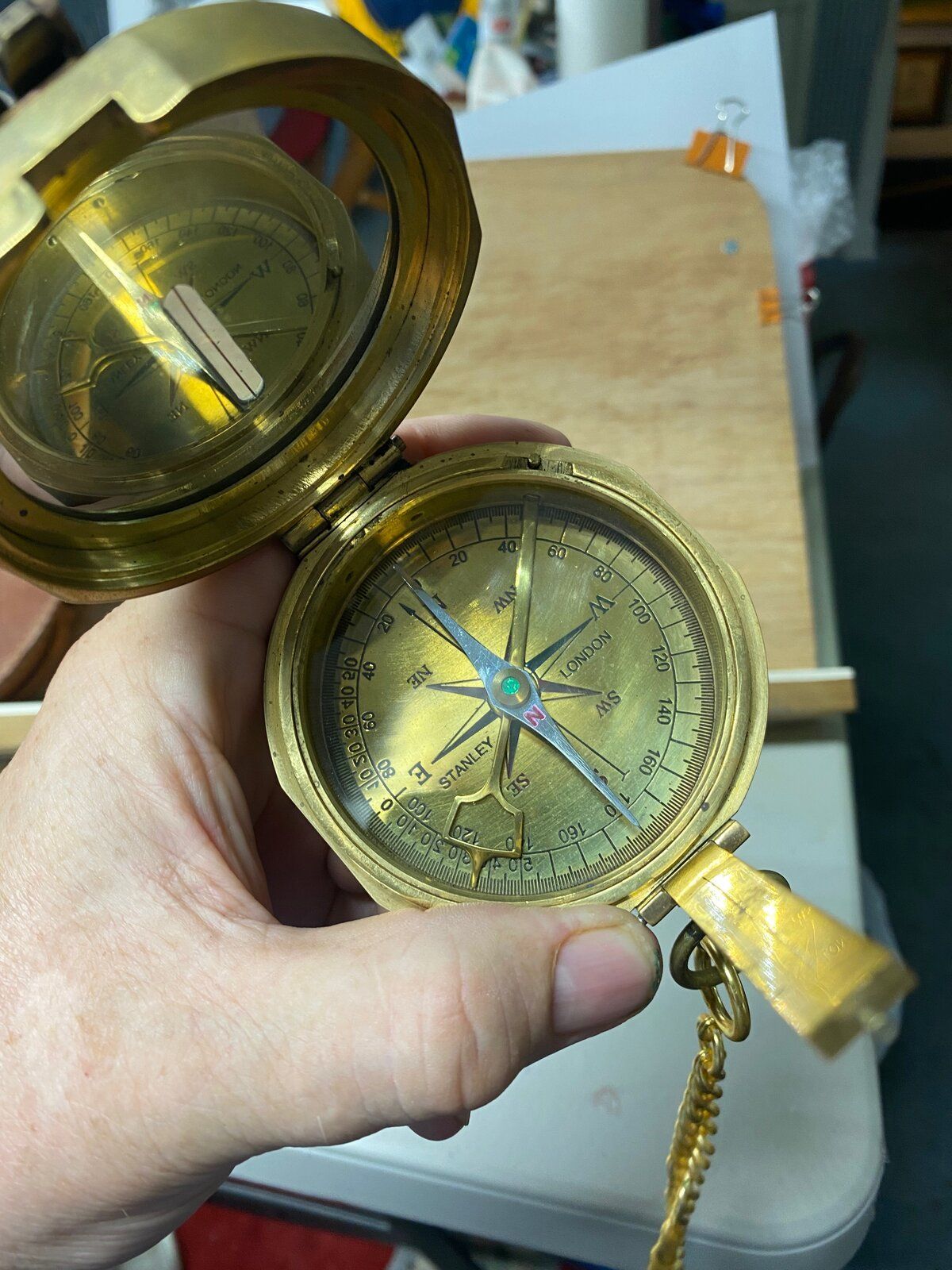

This is the inclinometer. Note the E on the compass is boxed by the needle indicating 0 degrees.
View attachment 404291

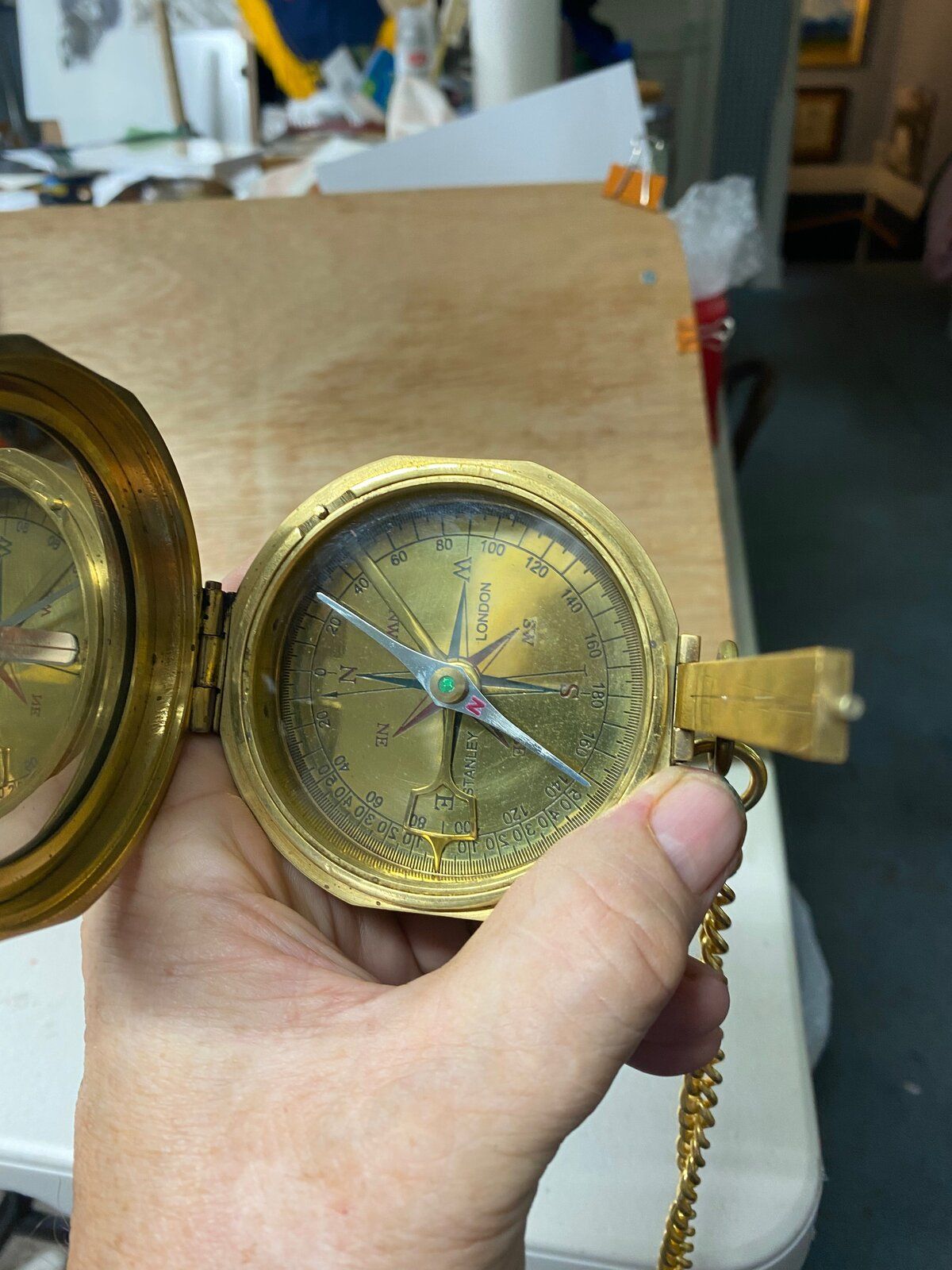

Compare the position of the E on the compass face with the position of the pointer in this image.
Notice that the degrees are meant to be read in the mirror.
What this allows you to do is to sight your point & call out the results to a helper who writes them down.
This handy-dandy compass/inclinometer was an essential piece of personal equipment for engineers & artillery officers.
View attachment 404318
Fortress Rosecrans outside Murfreesboro TN

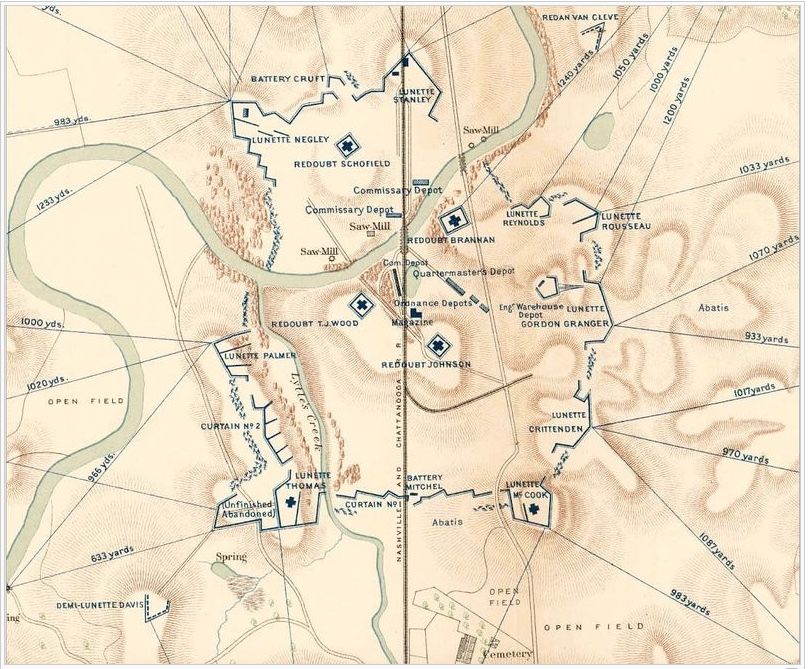

The lines with ranges in yards were made using survey instruments.
The intersections of the lines were marked by white poles with little flags on them.
In December 1864 the Washington Artillery went into battery over a mile from Lunette Negley & Battery cruft.
The first round fired by the 20 pound Parrotts struck a caisson.
A rain of accurate fire drove off the CSA artillery before they could fire a shot.
About ten years ago, a cluster of Parrott shells was discovered at that site.
The rain soaked soil had absorbed the impact of the contact fused rounds without setting them off.
An O.E.D. unit from Fort Campbell blew them up in place.
Have you seen this "Mysteries & Conundrums" story by historians at the Fredericksburg and Spotsylvania National Military Park?Early in the morning of 2 May (0400) Lee met with Jackson (following a meeting the previous night when it had been decided that Jackson would march to flank Hooker, even though Jackson did not have an exact route of march). While Lee and Jackson were talking, Hotchkiss "approached the generals and spread his map on another hardtack box between them …[Hotchkiss] had found the route he had been seeking, and as he spoke "he traced it on the map [I think it is probably this map]: first due west to the furnace, then due south, away from the enemy, along a trail that gradually turned back west to enter the Brock Road, which ran northward to the plank road and the turnpike. However, he explained that the column must not turn north at this point, since that would bring it within sight of a Federal signal station at Fairview, but south again for a short distance to another road leading north and paralleling the Brock Road, which it joined a couple of miles above in some heavy woods just short of its junction with the plank road.
Have you seen this "Mysteries & Conundrums" story by historians at the Fredericksburg and Spotsylvania National Military Park?
Link -> Stonewall Jackson’s Last Map
Yes, I agree - this map really focuses on the main roads, landmarks, and terrain upon which Jackson was maneuvering his divisions on May 1 during his attack upon Sykes' Division of the Union V Corps [ ABT Map: Chancellorsville, May 1 ]. John Hennessy makes the point, "... it’s also clear the map includes a good deal of information that suggests Jackson used [it] earlier in the campaign". Landmarks that he marked were "places [that] mattered to Jackson on April 30 and May 1.".... Finally, the article says "Tellingly, it does not include the network of roads that would carry him to the Brock Road on May 2". It does not do so because it was only on the morning of May 2 that Hotchkiss arrived with his map and information about those roads. That is also why I think it must have been a map drawn by Jackson during the night of May 1 during his meeting with Lee.
I remember having to survey a small park outside Cape Girardeau when I was minoring in Geology at Southeast Missouri State back in the 60s. Now, after studying and writing about Stephen H. Long I have decided to get back into reenacting and do a Topographical Engineer. Has been interesting so far.I took 20 to 25 hours of cartography, aerial photo interpretation, photogrammetry, etc. as electives to my geosciences degree. We enjoyed the vantage point offered by aircraft and spy satellite photography. However, we did utilize field exercises where we were dropped off on foot in Mark Twain National Forest and assigned to rough in a topo map from visual observation. It was the mid-70s and almost every skill I acquired was replaced by computers within five years after I graduated. Many of those who completed their degree in the field ended up working at Defense Mapping Agency in St. Louis. I imagine accurate topo mapping was very difficult for those cartographers back in the mid-19th century.
Nobody ever said that the A of the C had 100,000 officers. That is, of course an absurdity. 100,000 is roughly the number of officers on bothe sides that relied on maps. So, thst misinformation can be set aside.The claim has been made that the Army of the Cumberland's map printing efforts were so efficient that "one hundred thousand officers were walking around with maps in their pockets".
This article describes a far more restricted distribution:
Sherman's Secret Weapon Was His Map Maven
William Merrill elevated cartography to a science that helped Union commanders win the warwww.historynet.com
Specifically, in his report of the 1863 Murfreesboro campaign, Major General Rosecrans paid tribute to the "ability of Capt. W.E. Merrill, engineer, whose successful collection and embodiment of topographical information, rapidly printed by Capt. William C. Margedant's quick process, and distributed to corps and division commanders, has already contributed very greatly to the ease and success of our movements over a country of difficult and hitherto unknown topography."
Before the beginning of the Atlanta Campaign, Capt Merrill himself described "his frantic efforts to get 200 copies of the map printed and distributed to Sherman's commanders."
He further noted "before we struck the enemy, every brigade, division, and corps commander in the three armies had a copy."
While this in no way denigrates the utility and quality of the maps produced by the Army of the Cumberland, it suggests the distribution was far smaller than suggested above. Does anyone have any actual evidence that maps were distributed to every officer in the AoC, or were even available to any officer who requested one?
100,000 is roughly the number of officers on bothe sides that relied on maps.
This is really interesting. My focus is on the A of the C. I knew that Thomas’ topographic organization was exemplary, I did not realize just how unique it was.Sirs, may I submit the following...
Collection; Master of Military Art and Science Theses
Title; Topographical intelligence and the American Civil War.
Author; Nettesheim, Daniel D.
Abstract; This study analyzes the organizational approaches to meet topographical intelligence needs which evolved in the major Federal armies during the Civil War. Research reveals that a topographical problem existed in 1861 which had significant impact on Federal operations early in the war. The primary cause of inadequate military maps was the focus of the Corps of Topographical Engineers from 1816 to 1860. National leaders, as well as many Army generals and the military engineers themselves, supported strong emphasis on civil works and internal improvement. The nature of the war placed a premium on the North's need for maps. The geographic size of the theater and strategies of opposing commanders were key factors in determining the necessary degree of map detail. Three distinct approaches to the map problem emerged. In the East where large-scale maps were most important, little was accomplished by the Army of the Potomac as engineers were horded on the army-level staff and employed without functional distinction. This approach was consistent with precedence and pre-war doctrine. In the West, Grant decentralized his meager engineer assets in the Army of the Tennessee. His directives fostered centralized control and engineer focus on map work during critical phases of his campaigns with favorable results. Only the Army of the Cumberland developed a formal topographical organization extending from army to brigade level. Its system, with specialization as the cornerstone, was clearly superior to those of the other armies. Ironically, the formal merger of the two engineer corps in 1863 masked the system and reasons for its origin and success, many of which transcend the American Civil War.
Series; Command and General Staff College (CGSC) MMAS thesis
Publisher; Fort Leavenworth, KS : US Army Command and General Staff College,
Date; Original 1978-06-09
Date; Digital 2008
Call number; ADA 057970
Release statement; Approved for public release; Distribution is unlimited. The opinions and conclusions expressed herein are those of the student-authors and do not necessarily represent the views of the U.S. Army Command and General Staff College or any other governmental agency. (References to these studies should include the foregoing statement.)
Repository; Combined Arms Research Library
Library; Combined Arms Research Library Digital Library
Date; created 2008-08-27
Cheers,
USS ALASKA
DTIC ADA057970: Topographical Intelligence and the American Civil War : Defense Technical Information Center : Free Download, Borrow, and Streaming : Internet Archive
This study analyzes the organizational approaches to meet topographical intelligence needs which evolved in the major Federal armies during the Civil War....archive.org
The Brunton Compass was patented in 1894 and obviously based on the Civil War sighting compass pictured in post #63. Brunton’s have been improved through the years and are still important in geological and archeological field use.I'd love to see some of your guys demonstrate the use of these instruments. In a way, it reminds of the way that seaborne vessels used triangulation to locate their position using sextants to measure the angles of the sun, moon and planets.
In the 70’s I was working for an oil company in Midland, TX. The drafting dept. had of course a blue print machine as you describe which was used for ordinary sized maps. For bigger maps they had what was called a vacuum printer. The original was held flat over the target paper by vacuum on a large clear, flat surface. Intense UV light projected through both sheets for about a minute until a perfect copy was made. It was a very cool machine.I worked for a brief stint in 1982 as an assistant in a company that copied blueprints. In that era 39 years ago it was a remarkably complex machine with an ammonia tank attachment, if I remember correctly. Blueprints were huge, and so the machine.
Lubliner.
The sun maps are definitely a great feat of engineering. Quick, using mainly natural resources, etc.
I've always been intrigued with the maps of the War. From the pros to the "chicken scratchers". I have to admit from using the OR atlas on several western vattlefie
