I have been doing research into building the CSS Manassas per the CWT blogs on her. I have concluded that "Flagships" model will work as a basis for the build. The comparison images show differences in the designs but as you can see, will work fine for a bash kit to get the blog outcome from @OwenEgan design. The model will be about 9 1/2" length at 1/192 scale approximately.

Will have some more info on this build soon. Model and parts have to be ordered along with some discussion with @shipmodeler . (Flagship models) I have researched this extensively for the build and considering cost factors along with a scratch build possibility, this is the way I will produce Owens design representation as close as possible. As the H.L. Hunley model of mine this one will have to be shaped accordingly using green putty. Depending on N scale for railroad tracks, I might be able to use actual tracks for the armor plating. We'll see.

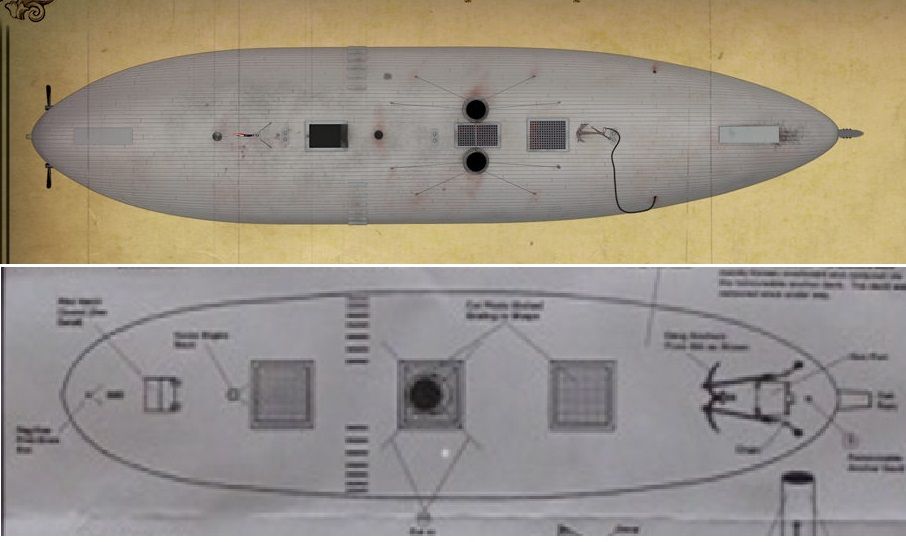

Drawings provided from Flagship and @OwenEgan . Images scaled to each other for build note comparison done by myself.

k16tikz t comparison.jpg


Model side by side comparison.jpg

k16tikz back front comparison.jpg


Rusk County Avengers

First Sergeant
Forum Host
Joined
Apr 8, 2018
Messages
1,479
Location
Coffeeville, TX
Can't wait to see you do that one, I've been curious about Flagship's models of the CSS Texas, CSS Chattahoochee, Maury gun boat models. I've never tried my hand at modeling, but your thread on CSS Alabama has got me to thinking....

As for CSS Manassas I've heard stories of her wreck, namely that she's under a levy largely intact considering what happened to her after her little run in with the USS Mississippi, and have heard stories of people swimming around her wreck way back in the day. Manassas had to be the ugliest ship of the war, but I reckon that can be forgiven, she one of if the first ironclads in America, and she was the first to see combat. Not a bad legacy, if the stories I've heard are true she really ought to be raised.

Fewer ads. Lots of American Civil War content!
JOIN NOW: REGISTER HERE!

Tut11

Sergeant
Joined
Jan 24, 2018
Messages
720
Can't wait to see you do that one, I've been curious about Flagship's models of the CSS Texas, CSS Chattahoochee, Maury gun boat models. I've never tried my hand at modeling, but your thread on CSS Alabama has got me to thinking....

As for CSS Manassas I've heard stories of her wreck, namely that she's under a levy largely intact considering what happened to her after her little run in with the USS Mississippi, and have heard stories of people swimming around her wreck way back in the day. Manassas had to be the ugliest ship of the war, but I reckon that can be forgiven, she one of if the first ironclads in America, and she was the first to see combat. Not a bad legacy, if the stories I've heard are true she really ought to be raised.
Thanks, Flagships has some great models.
We had discussed that possibility here at CWT on one of the blogs about what it would cost to raise her or another Ironclad down in Louisiana. Which would cost millions to do a proper job for preserving any artifacts which were found.

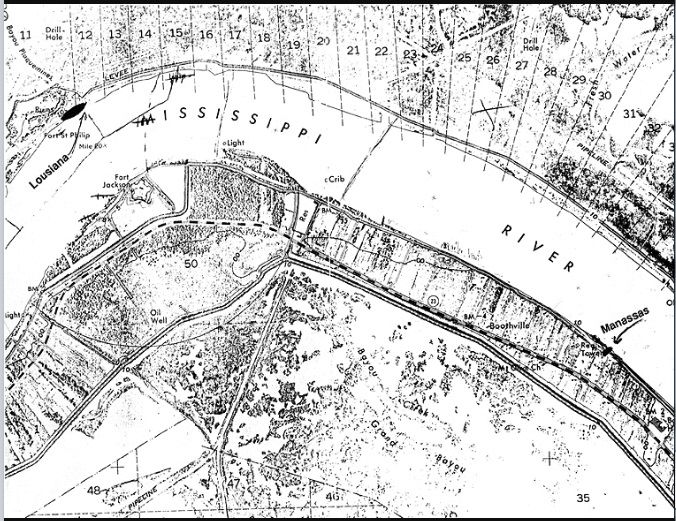

Location possibilities of the wrecks locations:
