Artillery shell—help identifying

Bamascvreb

Cadet
Joined
Jul 1, 2019
Messages
21

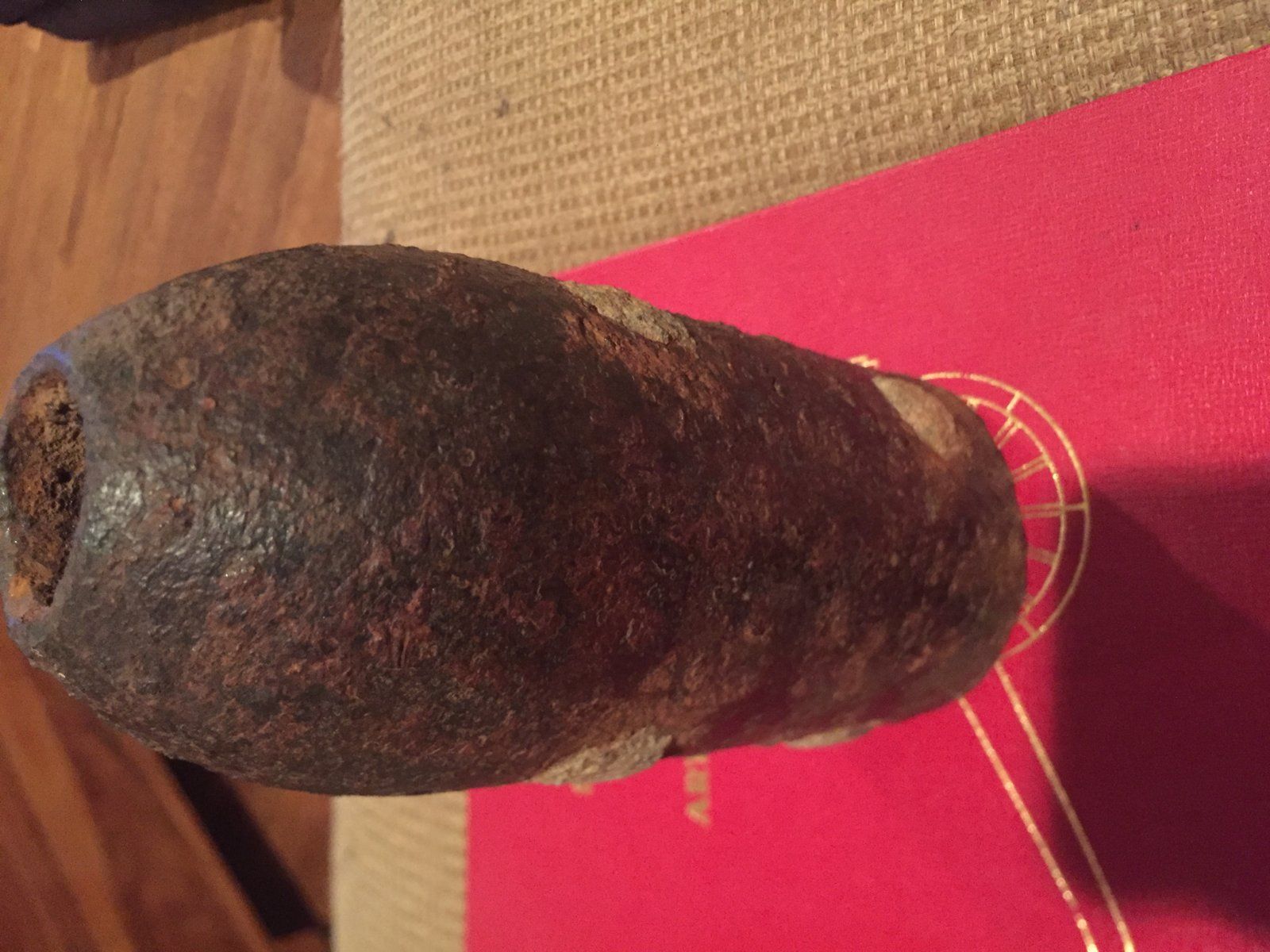

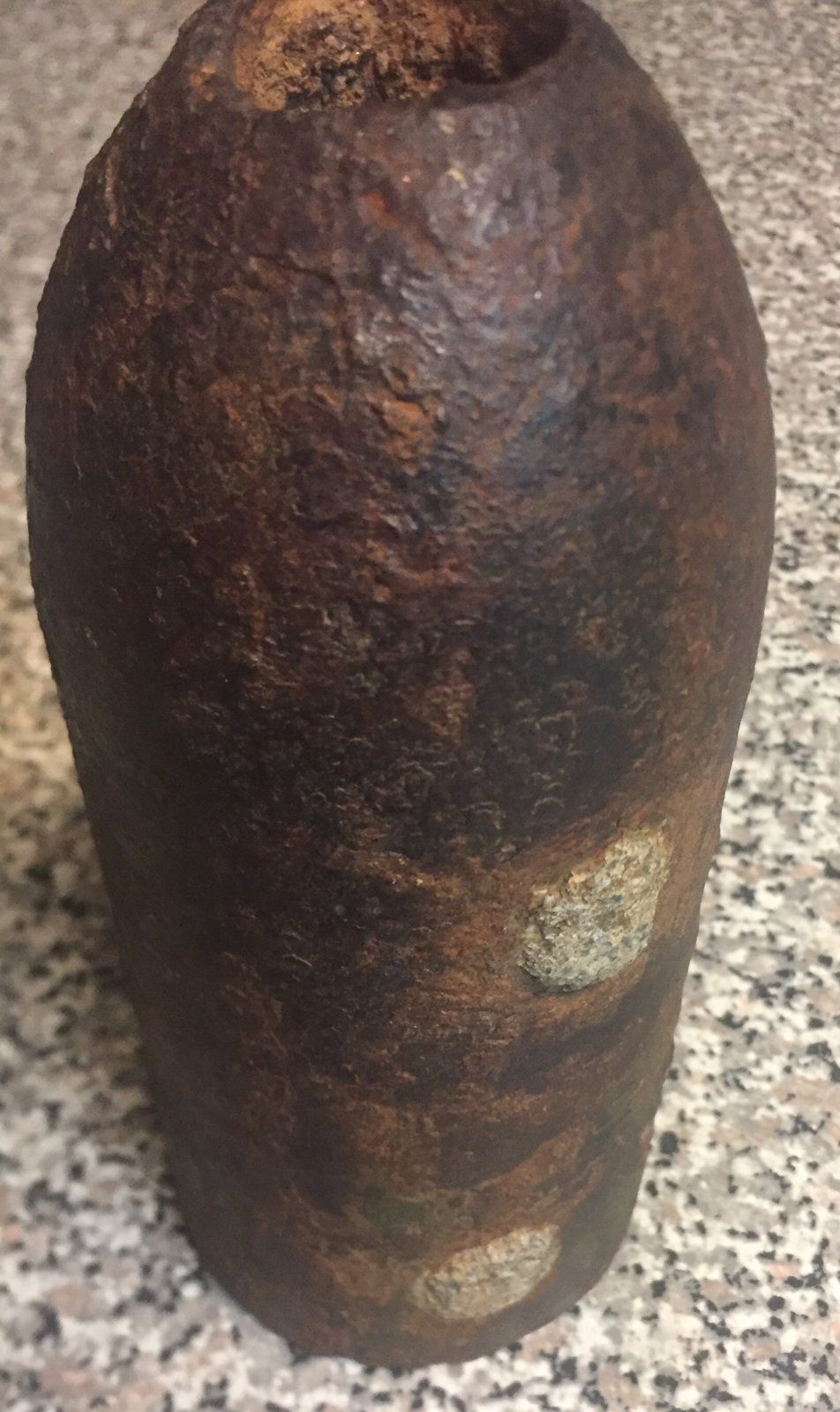

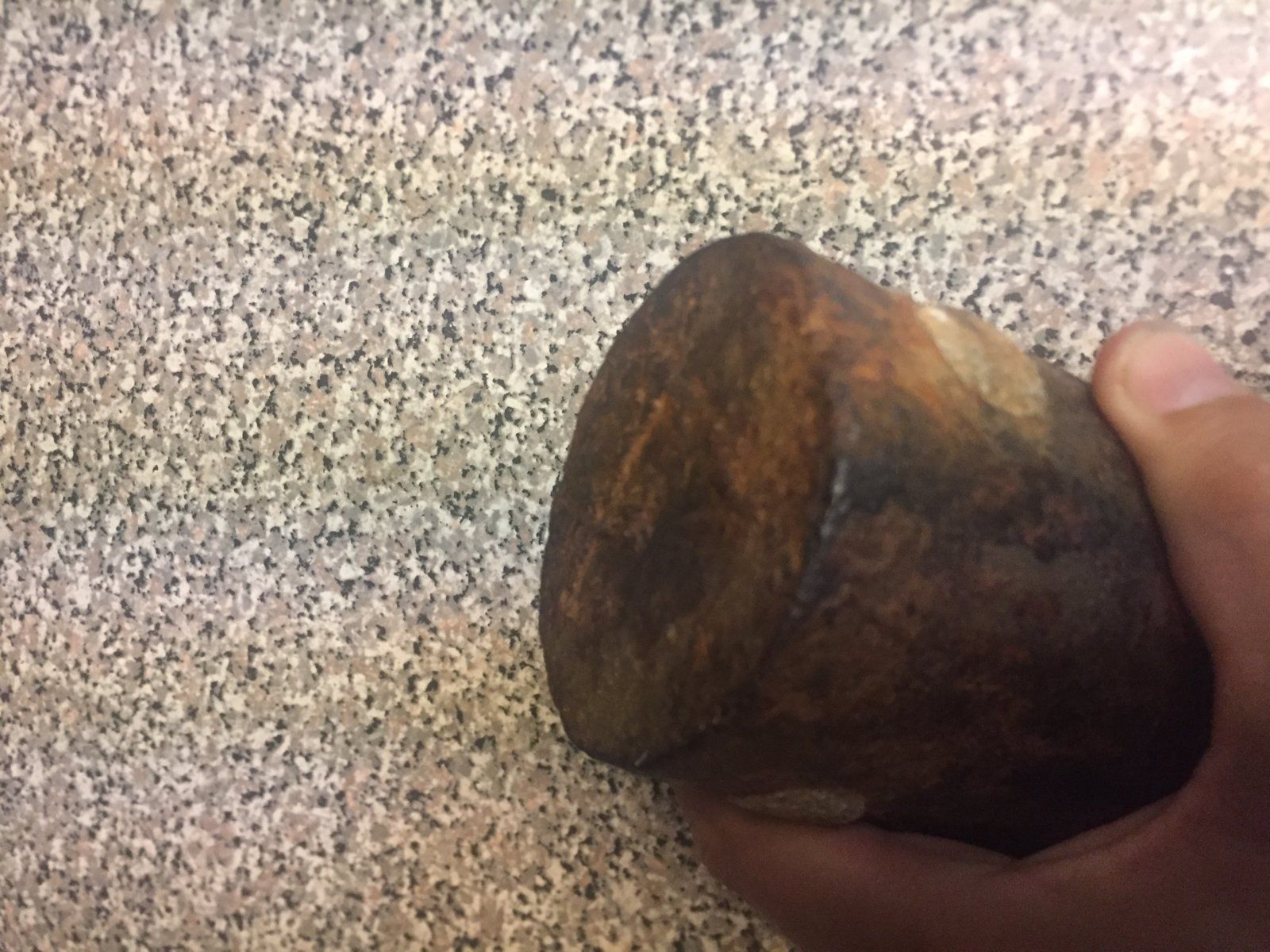

Just acquired this shell and not sure exactly what i have as bought it online. It is about 6 7/8 high, 3 inch diamter at orbase and weighs just under 7 lbs. i havent seen any without a rim so not sure exacty what this is, and, have no clue what these cement-like holes are that are filled in on the shell. Any thoughts are appreciated.













Fewer ads. Lots of American Civil War content!
JOIN NOW: REGISTER HERE!

Seduzal

Brigadier General
Moderator
Joined
Jun 19, 2013
Messages
5,673
Location
Canton, North Carolina
Welcome to CWT from the Smoky Mountain side of North Carolina. Just jump right in and enjoy. No clue but just wait a little while and someone will be along to answer your questions. Paging @ucvrelics


tbuckley

Sergeant
Joined
Jul 13, 2015
Messages
641
Welcome from eastern Ohio.
I suspect that the "cement-like holes" are lead plugs.


drezac

Sergeant
Forum Host
Joined
May 4, 2014
Messages
644
Location
1/2 way between Sherman and Sheridan, Rushville,OH
Welcome from the Cannons and Artillery Forum, and from Rushville Ohio, 1/2 way between Sherman ( lancaster) and Sheridan (somerset) Ohio

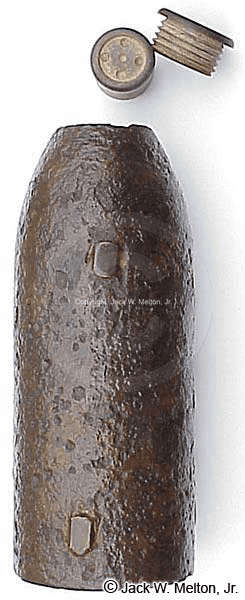

From the Field Artillery Projectiles of the Civil War, It looks like a round for an Armstrong or Clay breech loading Rifle. The holes match up to where the brass shunts would be that acted as a sabot to engage the rifling in the gun.


ucvrelics

Captain
Forum Host
Joined
May 7, 2016
Messages
7,451
Location
Alabama
Welcome From THE Heart Of Dixie. @drezac is spot on with it being an Armstrong. They came in several different versions. There were breach load and muzzle load Armstrong cannons. The studs on yours appear to be zinc. If you could post some photos of the studs themselves and the dimensions we can try and nail down which type it is.





Kurt G

Sergeant
Joined
May 23, 2018
Messages
724
Welcome from Michigan . For future references check civilwarartillery.com Lots of images of projectiles .


redbob

Captain
Joined
Feb 18, 2013
Messages
6,695
Location
Hoover, Alabama
It would certainly appear to be an Armstrong which is one of the most argued over shells used in the Civil War as when you mention it; one faction will say that that they were never used by the Confederates and one will say that it was. I have to say that it was as I have one that was dug on Lee's Retreat Route in Farmville, Virginia.:cannon:


Bamascvreb

Cadet
Joined
Jul 1, 2019
Messages
21
Welcome From THE Heart Of Dixie. @drezac is spot on with it being an Armstrong. They came in several different versions. There were breach load and muzzle load Armstrong cannons. The studs on yours appear to be zinc. If you could post some photos of the studs themselves and the dimensions we can try and nail down which type it is.

View attachment 316650

View attachment 316648

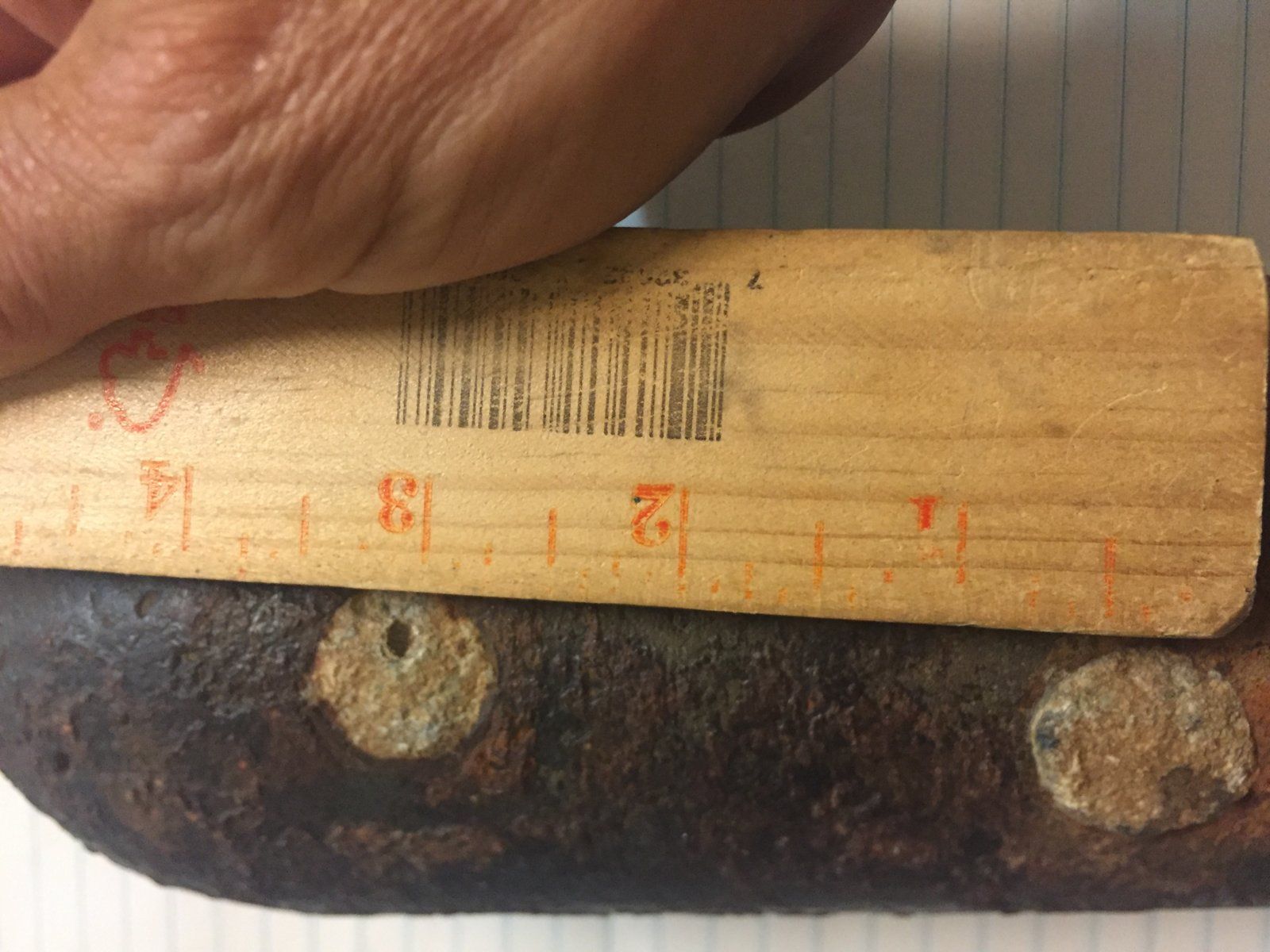

Attached are couple close-up pics. The plugs are not magnetic. Diameter is approx 3/4 of an inch
