Lt.Arty 12 pdr. Field Howitzer

An effective, serviceable cannon before the American Civil War, the 12 pdr. Field Howitzer was a poor weapon in comparison to new weapons such as the 12 pdr. "Napoleon" Light Field Gun, and 3 inch rifles. Most howitzers in Federal service were melted down, and replaced with more Napoleons, except in the west where light and more maneuverable weapons were required. The Confederate Army, with a shortage of usable cannon, maintained them in their arsenal for most of the war.

ARTILLERY PROFILE
  • In Service With:
    • United States Army
    • Confederate States Army
    • Virginia Military Institute; Arkansas Military Institute;
    • State of Georgia; State of New York; State of Connecticut
  • Type: Muzzleloading Field Howitzer
  • Purpose: To support infantry and cavalry forces by firing explosive shells in a high trajectory over enemy fortifications for plunging and ricochet fire, and also for short range anti-personnel missions using spherical case shot and canister.
  • Invented By: Various Cannon Manufacturers at the request and specification of the US Army Ordnance Board in 1831
  • Years of Manufacture: 1841 to 1863
  • Tube Composition: Bronze
  • Bore Diameter: 4.62 inches
    • Inner Chamber Diameter: 3.67 inches
  • Rarity: Uncommon to Rare
PERFORMANCE
  • Rate of Fire: 1 rounds per minute
  • Rifling Type: none
  • Standard Powder Charge: 1 lb. Cannon Grade Black Powder, 0.75 lbs. for Case Shot
  • Muzzle Velocity: 953 ft/sec. for Case Shot; 1,015 ft/sec. for Canister; 1,054 ft/sec. for Shell
  • Effective Range (at 5°): With Shells, 1,072 yards (0.6 miles)
  • Effective Range (at 3° 45'): With Case Shot, 1,050 yards
  • Projectile Flight Time (at 3° 45'): With Case Shot, 4 seconds
  • Projectiles: 8.9 lb. Shells, 11.0 lbs. Case Shot, 9.64 lbs. Canister
    • 15 shells, 20 spherical case shot, and 4 canister rounds per limber box
WEIGHTS & MEASURES
  • Typical Number of Projectiles Per Gun: 156 rounds in 4 Limber boxes (39 ea.)
  • Tube Length: 53 inches
  • Tube Weight: 788 lbs.
  • Trunnion Diameter: 3.67 inches
  • Carriage Type: No. 1 Field Carriage (900 lbs.), 57" wheels
  • Total Weight (Gun & Carriage): 1688 lbs.
  • Horses Required to Pull: 6
  • No. of Crew to Serve: 8
  • No. in North America from 1861 to 1865: about 250
    • No. of Original Pieces That Are Known to have Survived Until Today: ?
  • Cost in 1862 Dollars: about $500.00 (US)
MANUFACTURING
  • US Casting Foundries: Cyrus Alger of Boston,Massachusetts; N.P. Ames of Springfield, Massachusetts; Miles Greenwood’s Eagle Foundry, Cincinnati, Ohio; William Marshall’s Western Foundry, St. Louis, Missouri; B. F. Lemmon, New Albany, Indiana
  • CS Casting Foundries: Tredegar Foundry, Richmond, Virginia; Leeds & Co., New Orleans, Louisiana; Quinby & Robinson of Memphis, Tennessee; the Washington Foundry in Richmond, Virginia; Columbus Iron Works in Columbus, Georgia; Noble Brothers, Rome, Georgia; Quinby & Robinson, Memphis, Tennessee; T.M. Brennan, Nashville, Tennessee; and a few other small vendors.
  • Variants: 12-pdr Iron Field Howitzer, Tredegar variants looked similar to Ordnance Rifles, with a more prominent reinforce at the breech.
  • Special Notes: In companion to the 6 pdr. Smoothbore Field Gun, the 12 pdr. Howitzer was designed to fire at a higher trajectory in order to attack targets masked to flat trajectory gun fire.
The 12 pdr. Field Howitzer was by far the most effective field piece of the war for use at any range under 400 yards. Its large shells gave it firepower, while its light weight, less than 800 lbs, made it highly mobile and easy to position, even by hand.
Because of its mobility, the piece was readily adaptable for close infantry support. The 12-pdr howitzer's great weakness was its effective range, which is not much over 1,000 yards, well under that of even the 6-pdr gun. It made the piece an easy target for other artillery.​

FOR FURTHER READING
ASSOCIATED LINKS

Last edited:

CivilWarTalk

Lieutenant General
- ★★★ -
Managing Member & Webmaster
Joined
Apr 1, 1999
Location
Martinsburg, WV

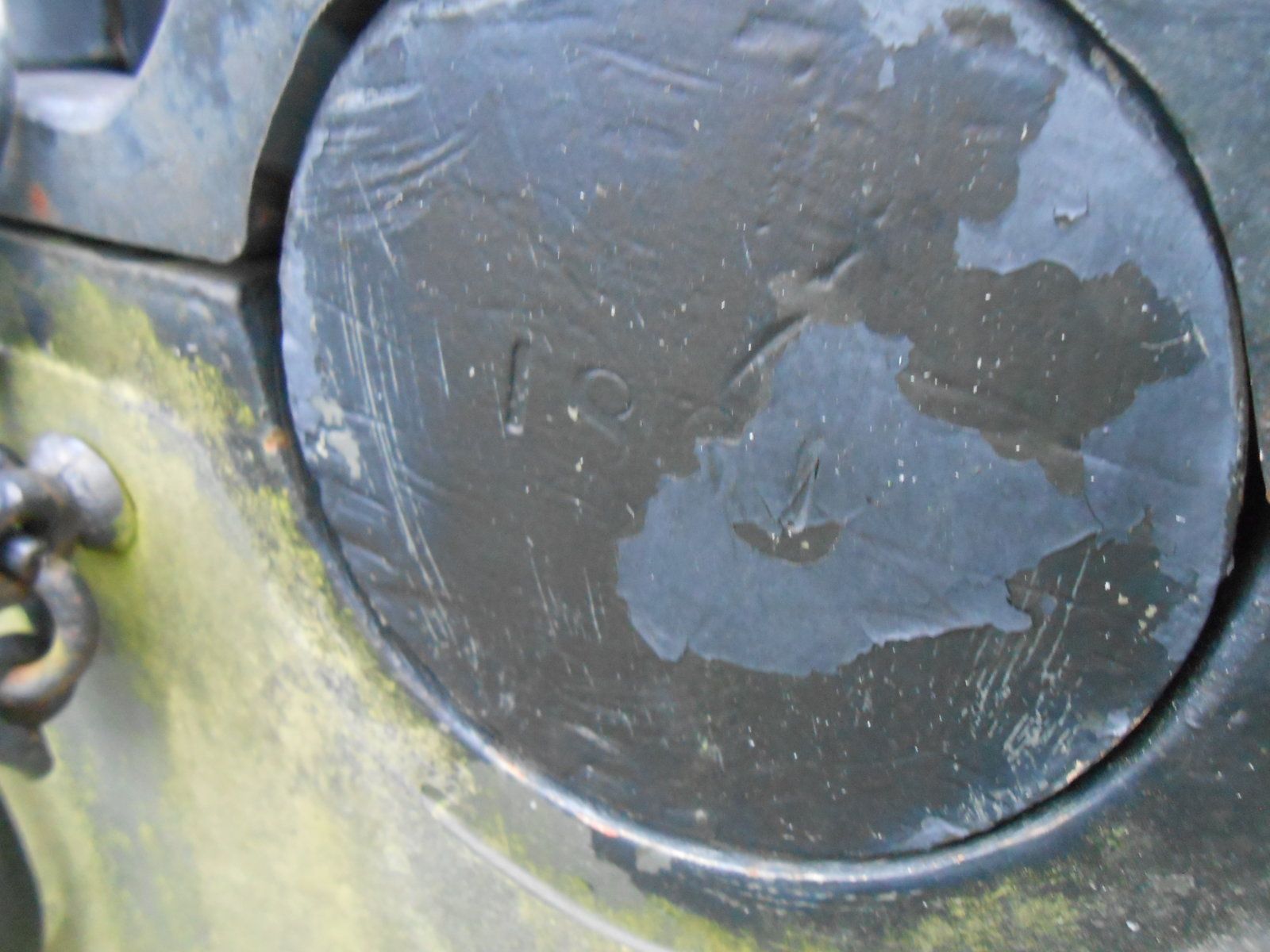

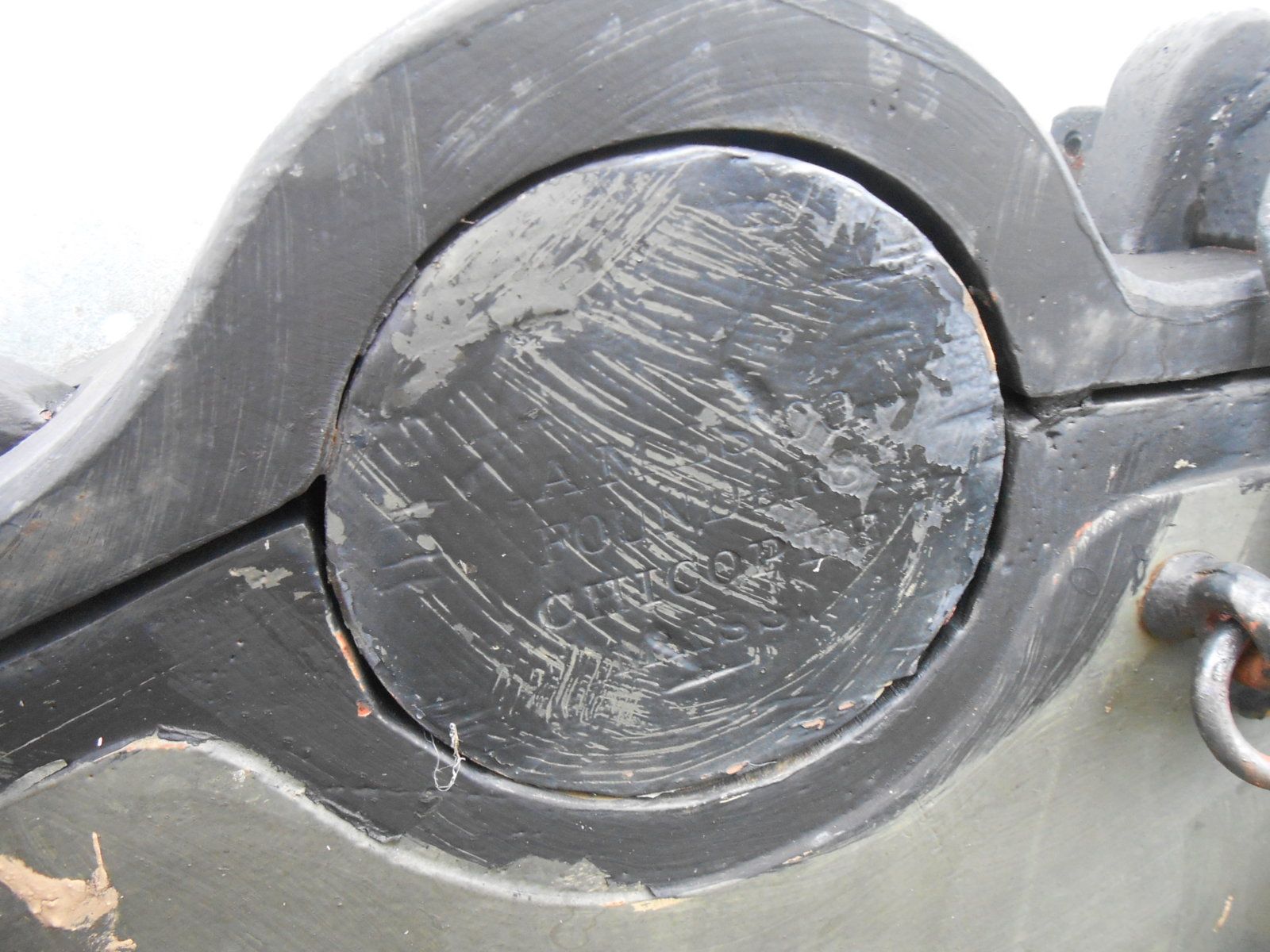

Ames M1841 12 pdr. Bronze Howitzer


Antietam NB: M1841 12 pdr. Howitzer
Ames Manufacturing Co., Chicopee, MA
No. 112?, Cast in 1855?, Weight 785 lbs.
©Michael Kendra, November 2019


Antietam NB: M1841 12 pdr. Howitzer
Ames Manufacturing Co., Chicopee, MA
No. 112?, Cast in 1855?, Weight 785 lbs.
©Michael Kendra, November 2019


Antietam NB: M1841 12 pdr. Howitzer
Ames Manufacturing Co., Chicopee, MA
No. 112?, Cast in 1855?, Weight 785 lbs.
©Michael Kendra, November 2019


Antietam NB: M1841 12 pdr. Howitzer
Ames Manufacturing Co., Chicopee, MA
No. 112?, Cast in 1855?, Weight 785 lbs.
©Michael Kendra, November 2019


Antietam NB: M1841 12 pdr. Howitzer
Ames Manufacturing Co., Chicopee, MA
No. 112?, Cast in 1855?, Weight 785 lbs.
©Michael Kendra, November 2019


Antietam NB: M1841 12 pdr. Howitzer
Ames Manufacturing Co., Chicopee, MA
No. 112?, Cast in 1855?, Weight 785 lbs.
©Michael Kendra, November 2019

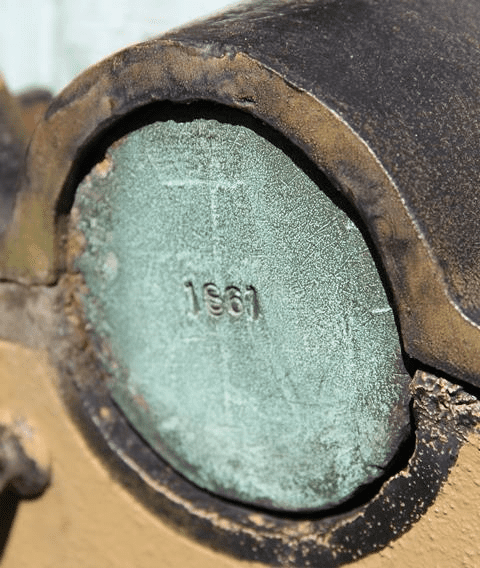

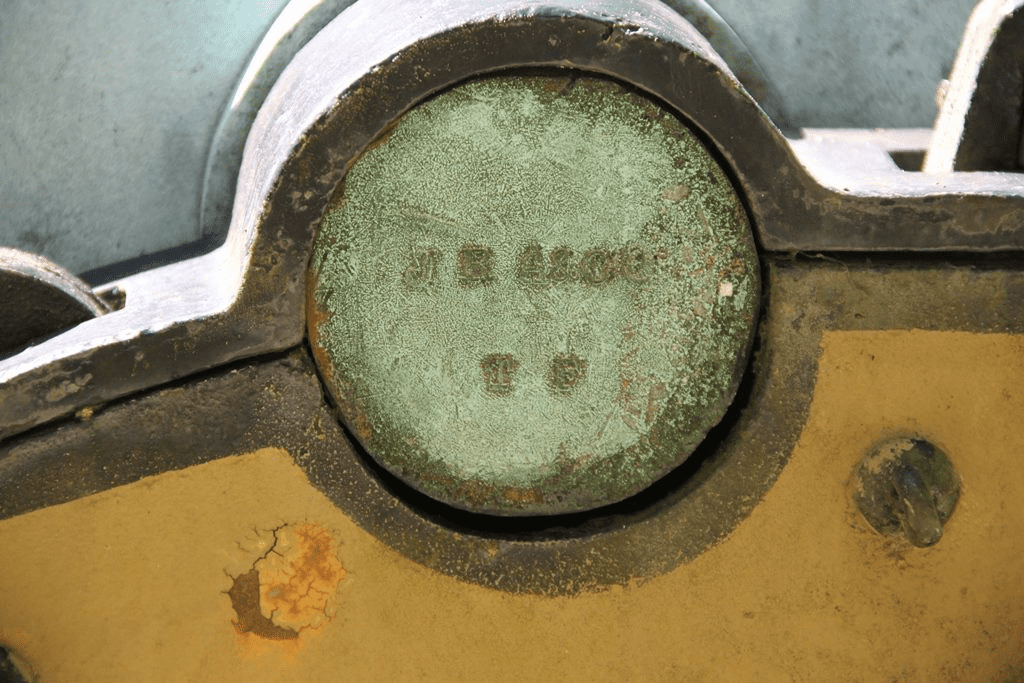

Tredegar M1841 12 pdr. Bronze Howitzer


Shiloh NHP: M1841 12 pdr. Howitzer
J. R. Anderson Co., Tredegar Foundry, Richmond, Virginia
Cast in 1861, No other visible markings found.
1 of only 3 remaining of 42 total cast.
NPS Photo 2015.

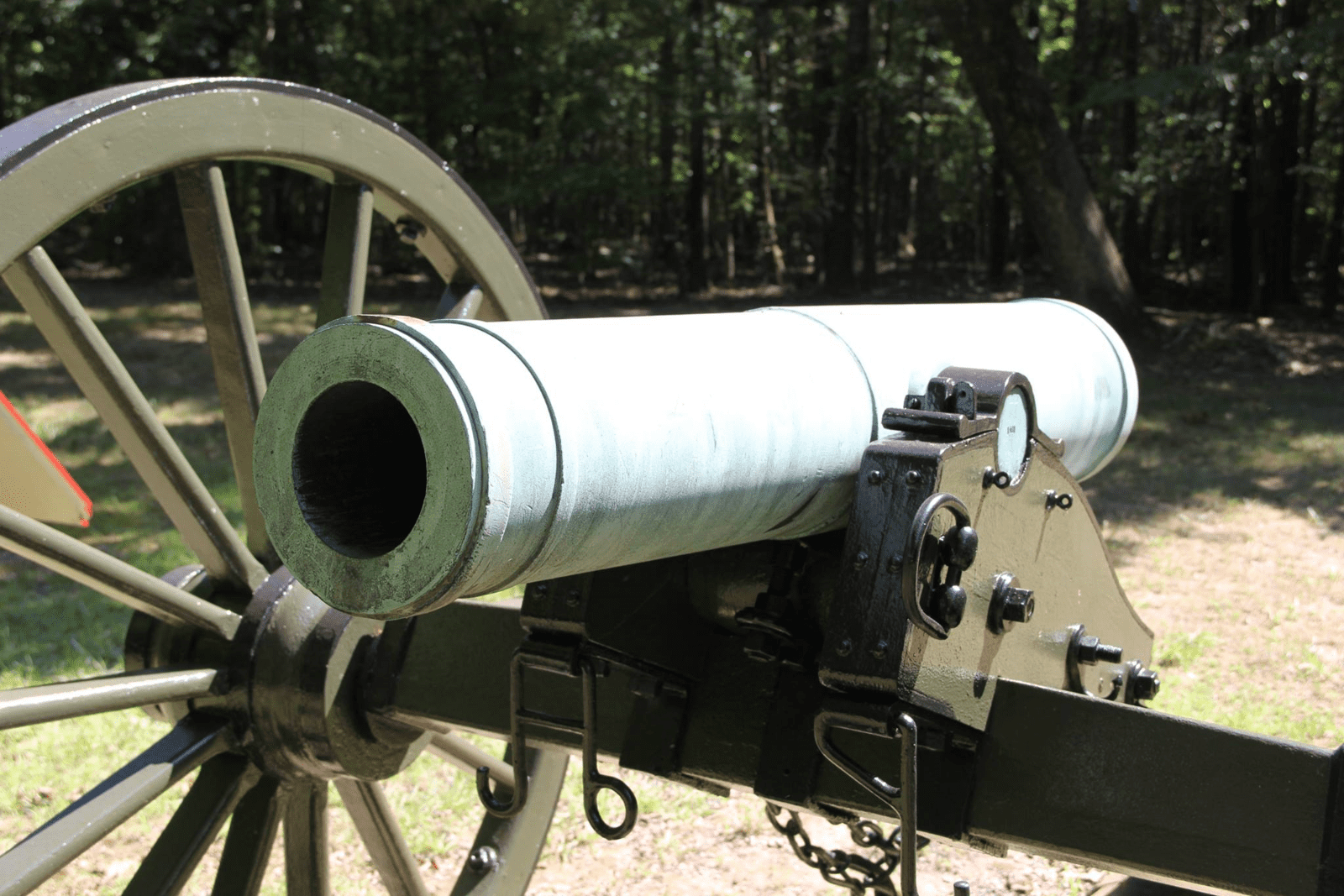

Shiloh NHP: M1841 12 pdr. Howitzer
Breech View - Note: Unique Sight Mount

J. R. Anderson Co., Tredegar Foundry, Richmond, Virginia
Cast in 1861, No other visible markings found.
1 of only 3 remaining of 42 total cast.
NPS Photo 2015.


Shiloh NHP: M1841 12 pdr. Howitzer
J. R. Anderson Co., Tredegar Foundry, Richmond, Virginia
Cast in 1861, No other visible markings found.
1 of only 3 remaining of 42 total cast.
NPS Photo 2015.


Shiloh NHP: M1841 12 pdr. Howitzer
J. R. Anderson Co., Tredegar Foundry, Richmond, Virginia
Cast in 1861, No other visible markings found.
1 of only 3 remaining of 42 total cast.
NPS Photo 2015.
Confederate 12 pdr. Iron Howitzer


No manufacturer, date, weight, or visible markings.
Visually larger than standard 12 pdr. Bronze Howitzer.
Antietam NB, ©Michael Kendra, November 2019


No manufacturer, date, weight, or visible markings.
Visually larger than standard 12 pdr. Bronze Howitzer.
Antietam NB, ©Michael Kendra, November 2019


No manufacturer, date, weight, or visible markings.
Visually larger than standard 12 pdr. Bronze Howitzer.
Antietam NB, ©Michael Kendra, November 2019

Last edited:

Waterloo50

Major
Forum Host
Silver Patron
Joined
Jul 7, 2015
Location
England
I’ve often wondered what the difference was between the 12 Pounder Howitzer and the 12 Pounder Napoleon, from looking at the various performances of both I think that the advantages of the Napoleon 12 Pdr were only slightly better, I see that the Howitzer was lighter and probably easy to manoeuvre than the heavier Napoleon and that’s obviously a good thing but other than a slightly better range than the Howitzer, I can’t really see what great advantages the Napoleon provided. whilst we’re on the subject, does anyone know what the difference is between the standard Howitzer and the Mountain Howitzer, again, the range of the Mountain Howitzer was apparently only slightly shorter than the standard 12 Pounder Howitzer.

Interesting subject by the way.


CivilWarTalk

Lieutenant General
- ★★★ -
Managing Member & Webmaster
Joined
Apr 1, 1999
Location
Martinsburg, WV
I think howitzers were liked overall, until there was a rifle on the field opposite you, then you were having a bad day.

So here are the Mountain Howitzer Stats, yet to be transferred over here:

https://civilwarwiki.net/wiki/12_pdr._Mountain_Howitzer
I think the other thing to consider, if you are thinking, why not make all 12 pound howitzer mountain howitzers, is one stability and durability in the field, and two ammunition loadout. I think the standard howitzer was much more robust, but heavier and not as easy to maneuver or haul up a mountain pass, but it still had a decent amount of firepower.

The mountain howitzer could go anywhere, but it had limited ammo, and limited applications.

Last edited:

CivilWarTalk

Lieutenant General
- ★★★ -
Managing Member & Webmaster
Joined
Apr 1, 1999
Location
Martinsburg, WV
This table might also be helpful:

https://civilwarwiki.net/wiki/Principal_Characteristics_of_Common_Field_Artillery_Pieces
You can see, that having a shorter smaller barrel, and a lower powder load made for a much lower muzzle velocity, and even though the range of the projectile is somewhat similar between the mountain howitzer and the 12 pdr howitzer, the weight of the shell is lower, it's probably a thinner walled iron ball, granted than means more powder inside the ball probably, but it's probably not very accurate at that range, and it's just not performing in the same class as any of it's peers.


Belfoured

2nd Lieutenant
Joined
Aug 3, 2019
I’ve often wondered what the difference was between the 12 Pounder Howitzer and the 12 Pounder Napoleon, from looking at the various performances of both I think that the advantages of the Napoleon 12 Pdr were only slightly better, I see that the Howitzer was lighter and probably easy to manoeuvre than the heavier Napoleon and that’s obviously a good thing but other than a slightly better range than the Howitzer, I can’t really see what great advantages the Napoleon provided. whilst we’re on the subject, does anyone know what the difference is between the standard Howitzer and the Mountain Howitzer, again, the range of the Mountain Howitzer was apparently only slightly shorter than the standard 12 Pounder Howitzer.

Interesting subject by the way.
The range difference between the M1841 12 lb Howitzer and the M1857 Napoleon was actually pretty substantial. Add in the Howitzer's inability to handle solid shot, etc. and there are several reasons why Henry Hunt hated them and got rid of them. One example of how they affected tactics in a mixed battery was at 2BR on August 30, 1862. When Battery I 1st NY Light (Wiedrich's) was ordered to respond to Longstreet's attack on Chinn Ridge they had to leave their 2 Howitzers behind due to their limited range.


Waterloo50

Major
Forum Host
Silver Patron
Joined
Jul 7, 2015
Location
England
The range difference between the M1841 12 lb Howitzer and the M1857 Napoleon was actually pretty substantial. Add in the Howitzer's inability to handle solid shot, etc. and there are several reasons why Henry Hunt hated them and got rid of them. One example of how they affected tactics in a mixed battery was at 2BR on August 30, 1862. When Battery I 1st NY Light (Wiedrich's) was ordered to respond to Longstreet's attack on Chinn Ridge they had to leave their 2 Howitzers behind due to their limited range.
The Howitzer apparently had a range of approximately 1,072 Yards and the 12pdr Napoleon was about 1,619 Yards that is of course if both were fired at 5 degrees elevation. Would I be right in thinking that the Howitzer was used in the same way as a mortar, steep elevation in order to gain in range.


Rusk County Avengers

1st Lieutenant
Joined
Apr 8, 2018
Location
Coffeeville, TX
This is a cannon that the more I read on them, the more I like them. They were obsolete but I just like them I reckon its just a testament to my personal oddball tastes in guns, (like the my personal favorite history wise, Tredegar M1862 Mountain Rifles), and the interesting variance in markings also makes looking over different ones at parks fun.

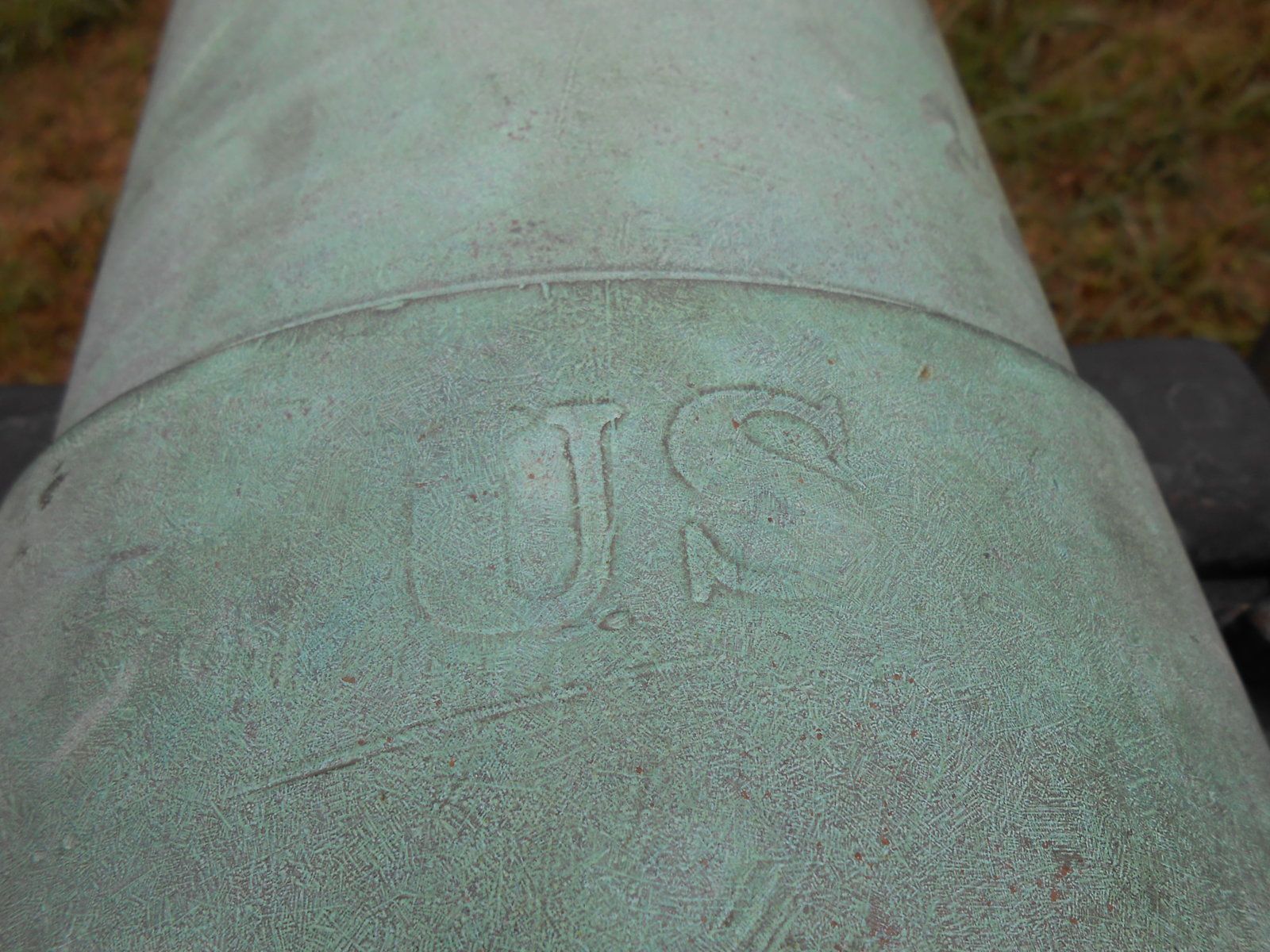

During "CWT Invades Vicksburg" I noticed some guns marked "U.S." while the majority I looked at weren't. I don't know if all were marked and the marking wore away, or if it was applied when they felt like it so to speak. Same thing with front sites a lot have them or used to have them, a lot of them don't, looking over each gun in a park is interesting to that way. Here are some photos

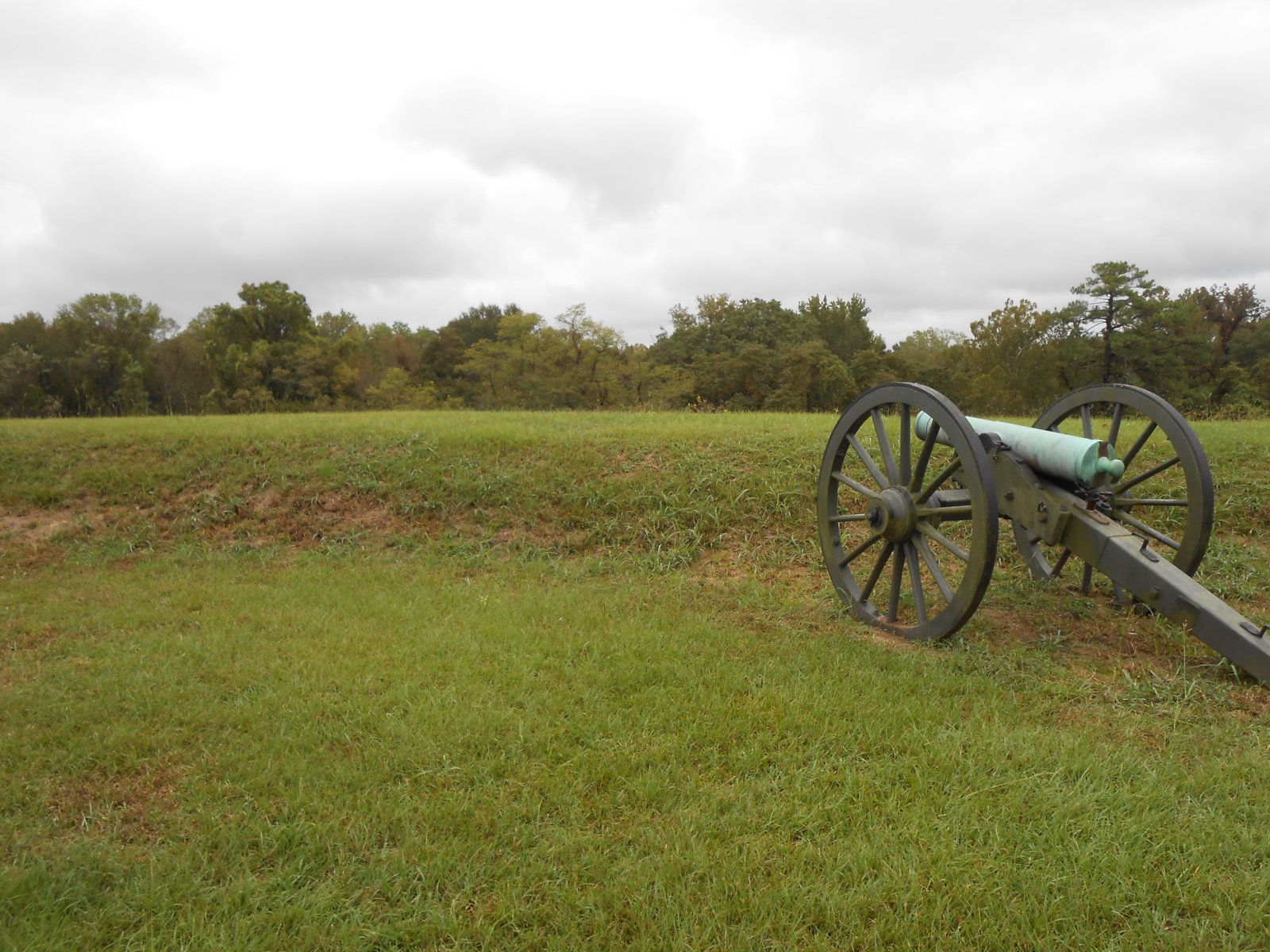

At the Stockade Redan
